Leeson
3HP 1PH 145TC 2P TEFC 3450 230V MOL NB
Mfr # 120824.00 | Wright’s # LSN 120824.00

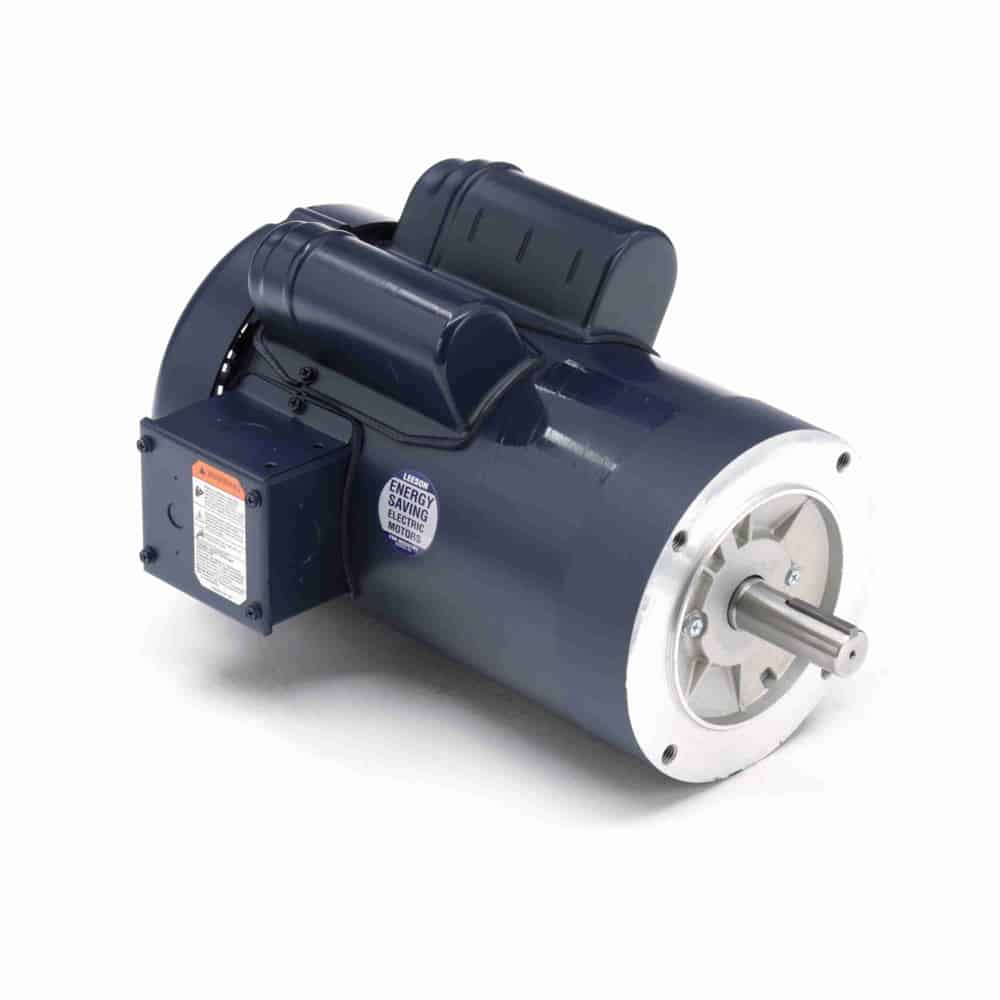

3HP Power Tool Motor, 1 Phase, 145TC Frame, 3450 RPM, 1 Speed, Capacitor Start Capacitor Run, 230V, TEFC Enclosure, Manual Overload Protection
Contact Us For Pricing
Product Information
Brand
Leeson
Mfr #
120824.00
Wright's #
LSN 120824.00
Country of Origin
USA
Specifications
C Dim
14.43"
Electrical Type
Capacitor Start Capacitor Run
Enclosure
TEFC
Full Load Efficiency
81.5
Frame
145TC
Frequency
60 Hz
HP
3 HP
HP2
3 HP
Insulation Class
F
kW
2.2kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Round
Number of Poles
2
Number of Speeds
1
Overload Protection
Manual
Phase
1
Rated Current
13.0
Rated Voltage
230
Rotation
Selective Counterclockwise
RPM
3450
Service Factor
1
Shaft Diameter
0.875"
Speed
3450
Starting Method
Description
UL recognized component listing and CSA certification ensures the product is safe for use.
Double-shielded bearings extend the service life of the motor.
Fully gasketed frame prevents dust entry.
High breakdown torque allows for optimum cutting power.
