Leeson

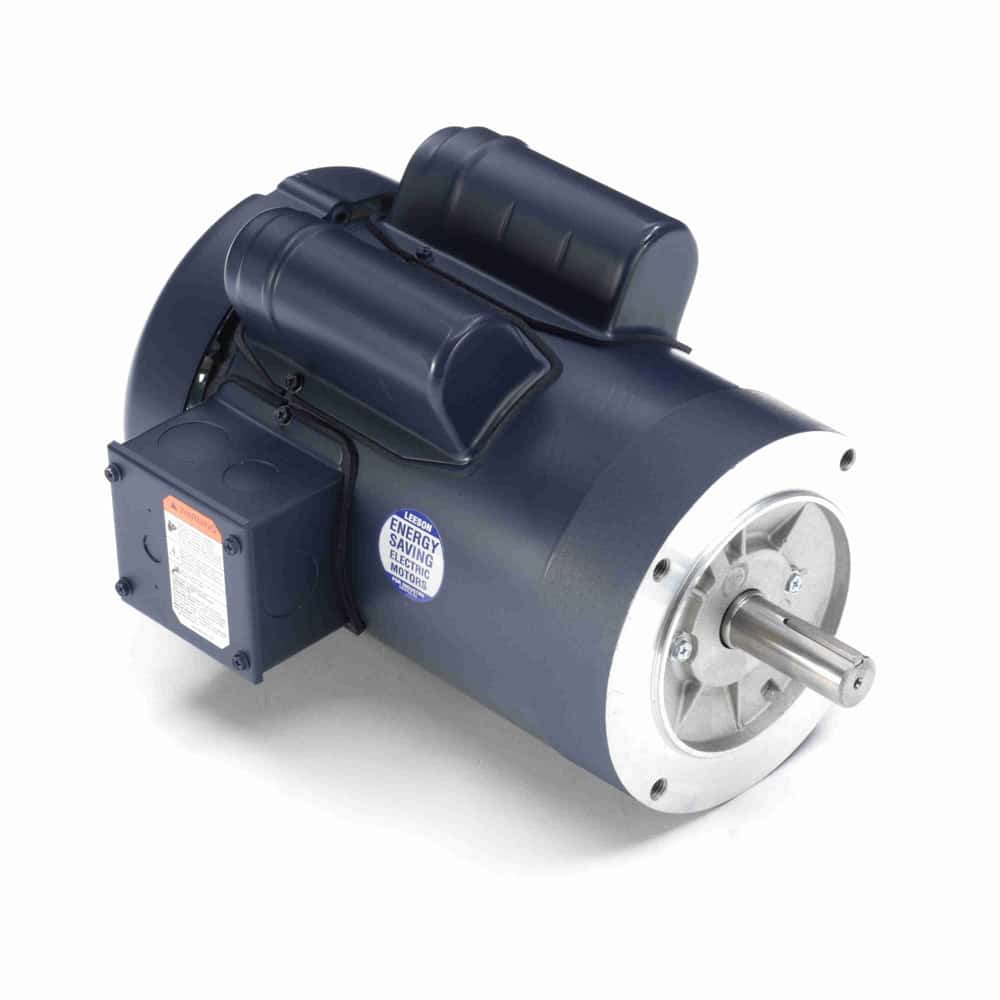

1.50HP 1PH 145TC 4P TEFC 1740 115/230V NB
Mfr # 120017.00 | Wright’s # LSN 120017.00
1-1/2HP General Purpose Motor, 1 Phase, 145TC Frame, 1740 RPM, 1 Speed, Capacitor Start Capacitor Run, 115/230V, TEFC Enclosure
Contact Us For Pricing
Product Information
Brand
Leeson
Mfr #
120017.00
Wright's #
LSN 120017.00
Country of Origin
USA
Specifications
C Dim
13.43"
Electrical Type
Capacitor Start Capacitor Run
Enclosure
TEFC
Full Load Efficiency
79
Frame
145TC
Frequency
60 Hz
HP
1.5 HP
HP2
1-1/2 HP
Insulation Class
B
kW
1.1kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Round
Number of Poles
4
Number of Speeds
1
Overload Protection
No Protection
Phase
1
Rated Current
17.2/8.6
Rated Voltage
115/230
Rotation
Selective Counterclockwise
RPM
1740
Service Factor
1
Shaft Diameter
0.875"
Speed
1740
Starting Method
Description
UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
Continuous duty cycle design allows maximum operation at the rated power. specifications
Heavy-duty, rolled steel construction ensures motor durability.
Permanently lubricated sealed bearings extend the lifetime of the motor.
Capacitor start design optimizes motor torque and efficiency performance.
Operational at 115/208-230 V @60HZ. Nameplate image may vary from actual product.
