Leeson
1HP 3PH 56HC 6P TEFC 1170 230/460V WB
Mfr # 119478.00 | Wright’s # LSN 119478.00

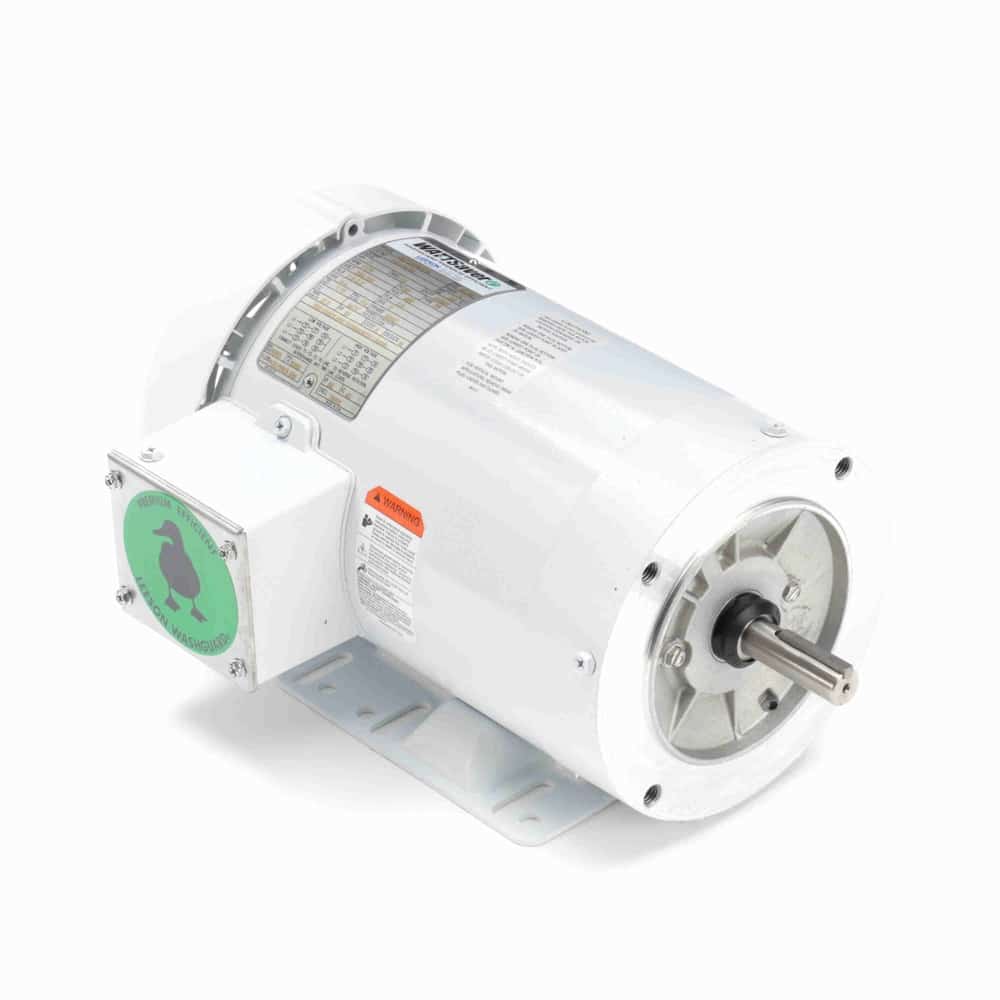

1HP Painted Epoxy Coated Washdown Motor, 3 Phase, 56HC Frame, 1170 RPM, 1 Speed, Squirrel Cage Induction Run, 230/460V, TEFC Enclosure
Contact Us For Pricing
Product Information
Brand
Leeson
Mfr #
119478.00
Wright's #
LSN 119478.00
Country of Origin
USA
Specifications
C Dim
13.37"
Electrical Type
Squirrel Cage Induction Run
Enclosure
TEFC
Full Load Efficiency
82.5
Frame
56HC
Frequency
60 Hz
HP
1 HP
HP2
1 HP
Insulation Class
F
kW
0.75kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Rigid Base
Number of Poles
6
Number of Speeds
1
Overload Protection
No Protection
Phase
3
Rated Current
3.8/1.9
Rated Voltage
230/460
Rotation
Reversible
RPM
1170
Service Factor
1.15
Shaft Diameter
0.625"
Speed
1170
Starting Method
Description
USDA-approved white epoxy finish ensures resistance and protection against caustic cleaning solutions.
Sealed bearings shut out contaminants that lead to bearing failure.
Stainless steel output shaft seals protect against external contaminants.
Cast, white epoxy conduit boxes house electrical wiring.
Operational at 208-230/460 V @60HZ. Nameplate image may vary from actual product.
