Leeson

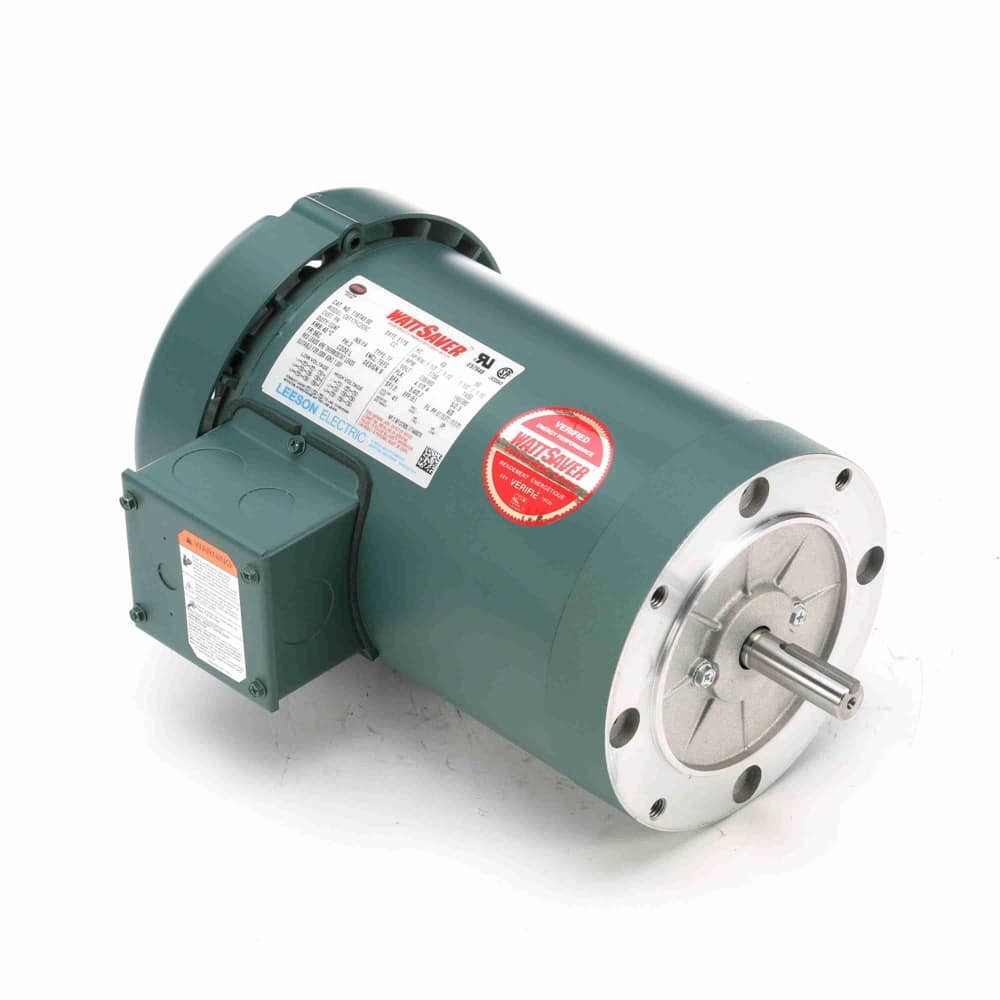

1.50HP 3PH 56C 4P TEFC 1750 230/460V TS NB
Mfr # 116743.00 | Wright’s # LSN 116743.00
1-1/2HP General Purpose Motor, 3 Phase, 56C Frame, 1750 & 1450 RPM, 1 Speed, Squirrel Cage Induction Run, 230/460V, TEFC Enclosure, Thermostat Overload Protection
Contact Us For Pricing
Product Information
Brand
Leeson
Mfr #
116743.00
Wright's #
LSN 116743.00
Country of Origin
USA
Specifications
C Dim
12.98"
Electrical Type
Squirrel Cage Induction Run
Enclosure
TEFC
Full Load Efficiency
86.5
Frame
56C
Frequency
60 Hz
HP
1.5 HP
HP2
1-1/2 HP
Insulation Class
F
kW
1.1kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Round
Number of Poles
4
Number of Speeds
1
Overload Protection
Thermostat
Phase
3
Rated Current
4.8/2.4 & 5/2.5
Rated Voltage
230/460
Rotation
Reversible
RPM
1750
Service Factor
1.25
Shaft Diameter
0.625"
Speed
1750 & 1450
Starting Method
Description
UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
Continuous duty cycle design allows maximum operation at the rated power specifications.
Class B or F Insulation protects motor for a maximum temperature rating.
Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
