Leeson

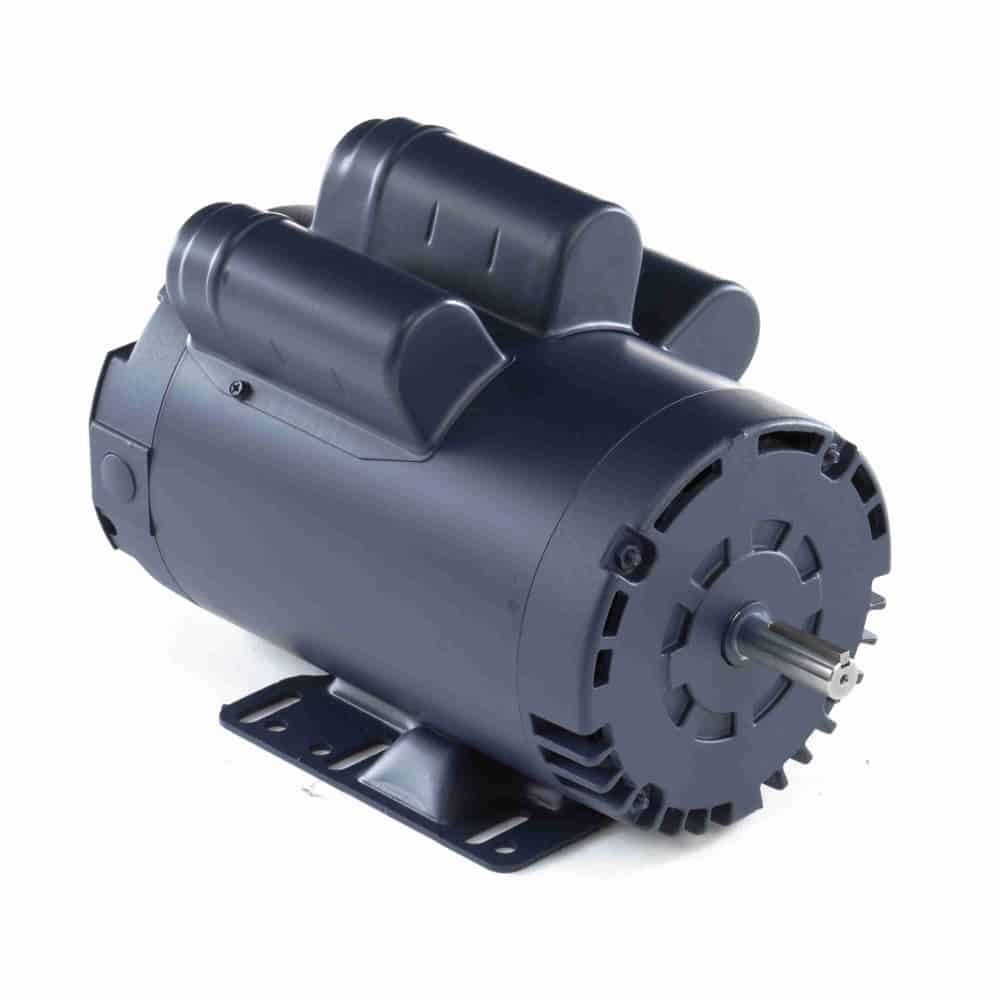

2HP 1PH 56H 4P DP 1740 115/230V MOL PW
Mfr # 116704.00 | Wright’s # LSN 116704.00
2HP Pressure Washer Motor, 1 Phase, 56H Frame, 1740 RPM, 1 Speed, Capacitor Start Capacitor Run, 115/230V, DP Enclosure, Manual Overload Protection
Contact Us For Pricing
Product Information
Brand
Leeson
Mfr #
116704.00
Wright's #
LSN 116704.00
Country of Origin
USA
Specifications
C Dim
12.68"
Electrical Type
Capacitor Start Capacitor Run
Enclosure
DP
Full Load Efficiency
79
Frame
56H
Frequency
60 Hz
HP
2 HP
HP2
2 HP
Insulation Class
F
kW
1.5kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Rigid Base
Number of Poles
4
Number of Speeds
1
Overload Protection
Manual
Phase
1
Rated Current
17.2/8.6
Rated Voltage
115/230
Rotation
Selective Counterclockwise
RPM
1740
Service Factor
1.15
Shaft Diameter
0.625"
Speed
1740
Starting Method
Description
Durable rolled steel construction
NEMA design B performance
Meets or exceeds NEMA service factors
Double shielded ball bearings
Continuous duty
Thermally protected ratings
UL recognized component listing and CSA certified
Operational at 115/208-230 V @60HZ. Nameplate image may vary from actual product.
