Leeson

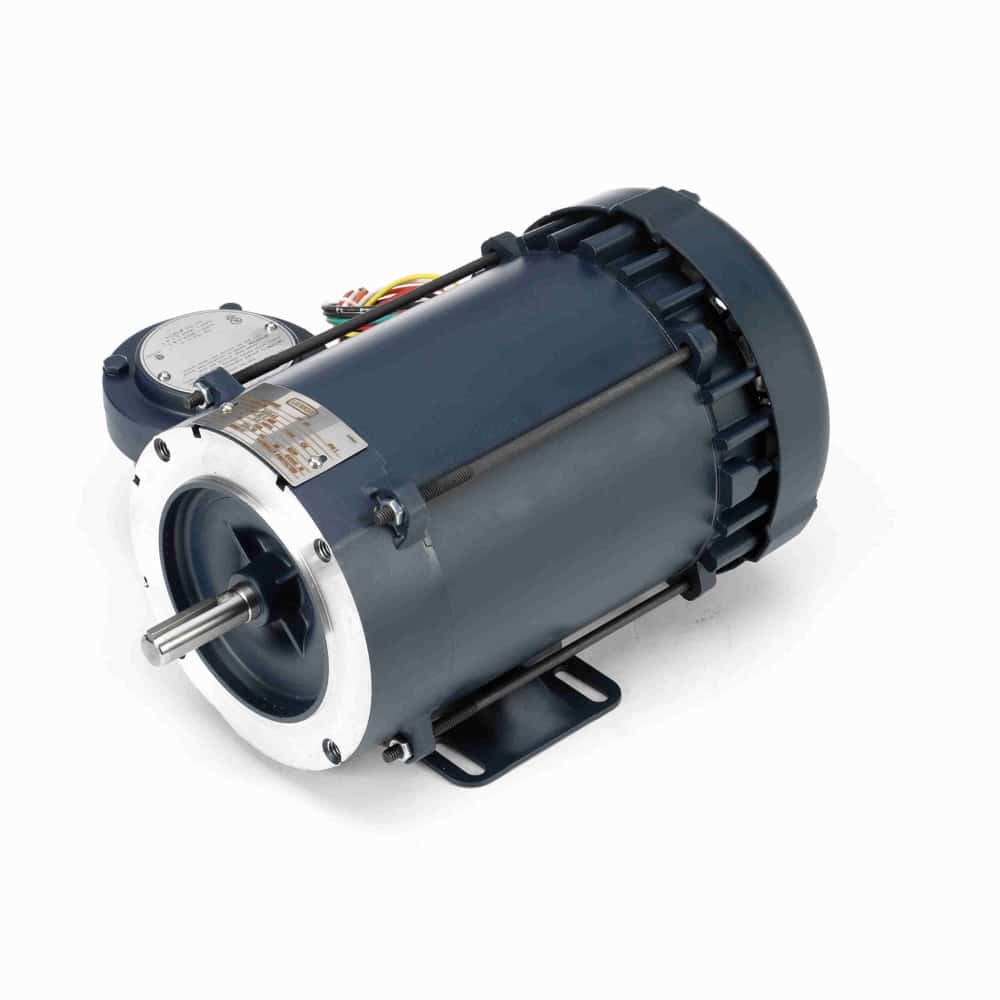

0.50HP 1PH 56C 2P EXP TEFC 3450 115/208-230V AOL WB
Mfr # 116608.00 | Wright’s # LSN 116608.00
1/2HP Explosion Proof Motor, 1 Phase, 56C Frame, 3450 RPM, 1 Speed, Capacitor Start Induction Run, 115/208-230V, EXP TEFC Enclosure, Automatic Overload Protection
$767.13
Product Information
Brand
Leeson
Mfr #
116608.00
Wright's #
LSN 116608.00
Country of Origin
MEX
Specifications
C Dim
13.44"
Electrical Type
Capacitor Start Induction Run
Enclosure
EXP TEFC
Full Load Efficiency
59.5
Frame
56C
Frequency
60 Hz
HP
0.5 HP
HP2
1/2 HP
Insulation Class
B
kW
0.37kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Rigid Base
Number of Poles
2
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
8.4/4.0-4.2
Rated Voltage
115/208-230
Rotation
Selective Counterclockwise
RPM
3450
Service Factor
1
Shaft Diameter
0.625"
Speed
3450
Starting Method
Description
UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
Meets T3B temperature code with a maximum surface temperature of 329° F.
Permanently lubricated, sealed bearings extend the lifetime of the motor.
140 frame motor and below include explosion proof conduit box, shipped loose.
