Leeson

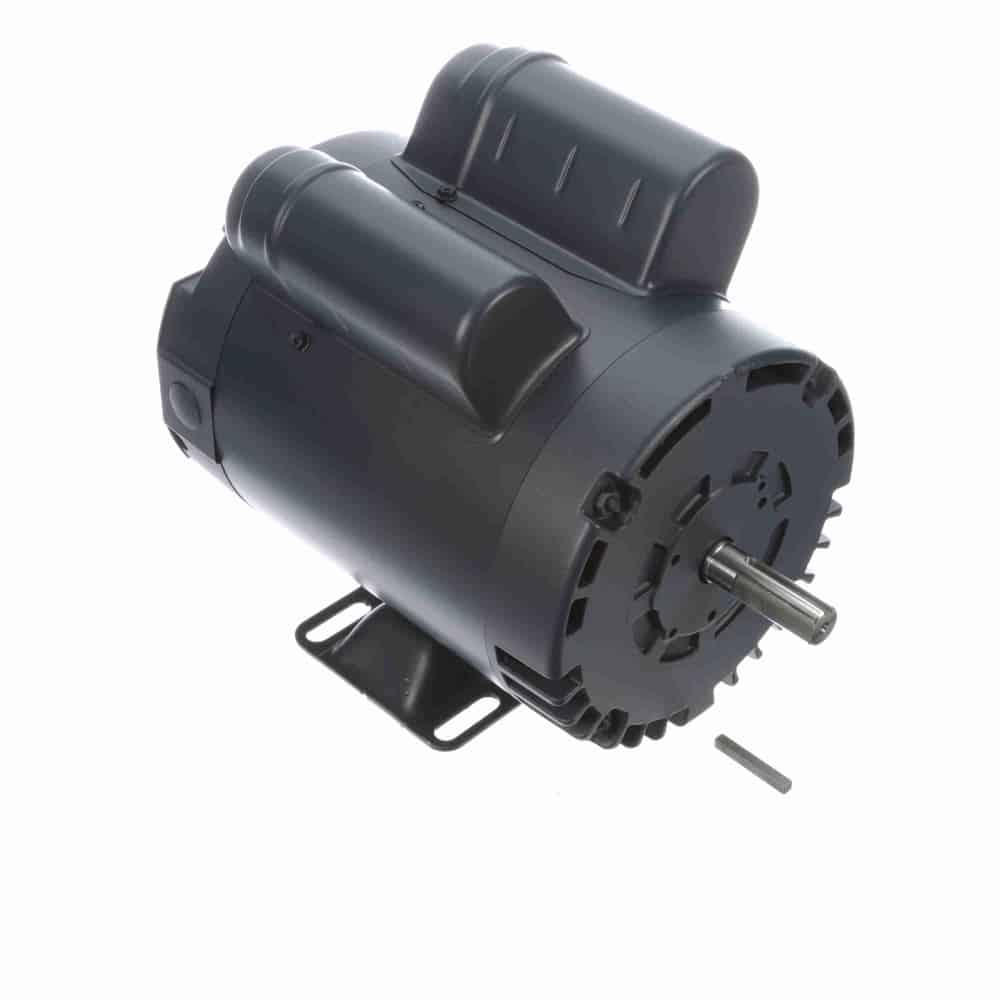

1HP 1PH 56Z 2P DP 3450 115/230V
Mfr # 114216.00 | Wright’s # LSN 114216.00
1HP Power Tool Motor, 1 Phase, 56Z Frame, 3450 RPM, 1 Speed, Capacitor Start Induction Run, 115/230V, DP Enclosure
Contact Us For Pricing
Product Information
Brand
Leeson
Mfr #
114216.00
Wright's #
LSN 114216.00
Country of Origin
USA
Specifications
C Dim
12.81"
Electrical Type
Capacitor Start Induction Run
Enclosure
DP
Full Load Efficiency
70
Frame
56Z
Frequency
60 Hz
HP
1 HP
HP2
1 HP
Insulation Class
B
kW
0.75kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Rigid Base
Number of Poles
2
Number of Speeds
1
Overload Protection
No Protection
Phase
1
Rated Current
12.0/6.0
Rated Voltage
115/230
Rotation
Selective Counterclockwise
RPM
3450
Service Factor
1.25
Shaft Diameter
0.625"
Speed
3450
Starting Method
Description
Designed for woodworking applications
Electronic starting switch
High starting and breakdown torques
48 frame model has 1-1/2” long shaft by 1/2” Dia.
56 frame models have a 1-7/8” long shaft by 5/8” Dia.
Shaft extensions, each end, include keyway and flat, 90º apart
Operational at 115/208-230 V @60HZ. Nameplate image may vary from actual product.
