Leeson
0.50HP 1PH 56C 2P TEFC 3450 115/230V WB
Mfr # 113581.00 | Wright’s # LSN 113581.00

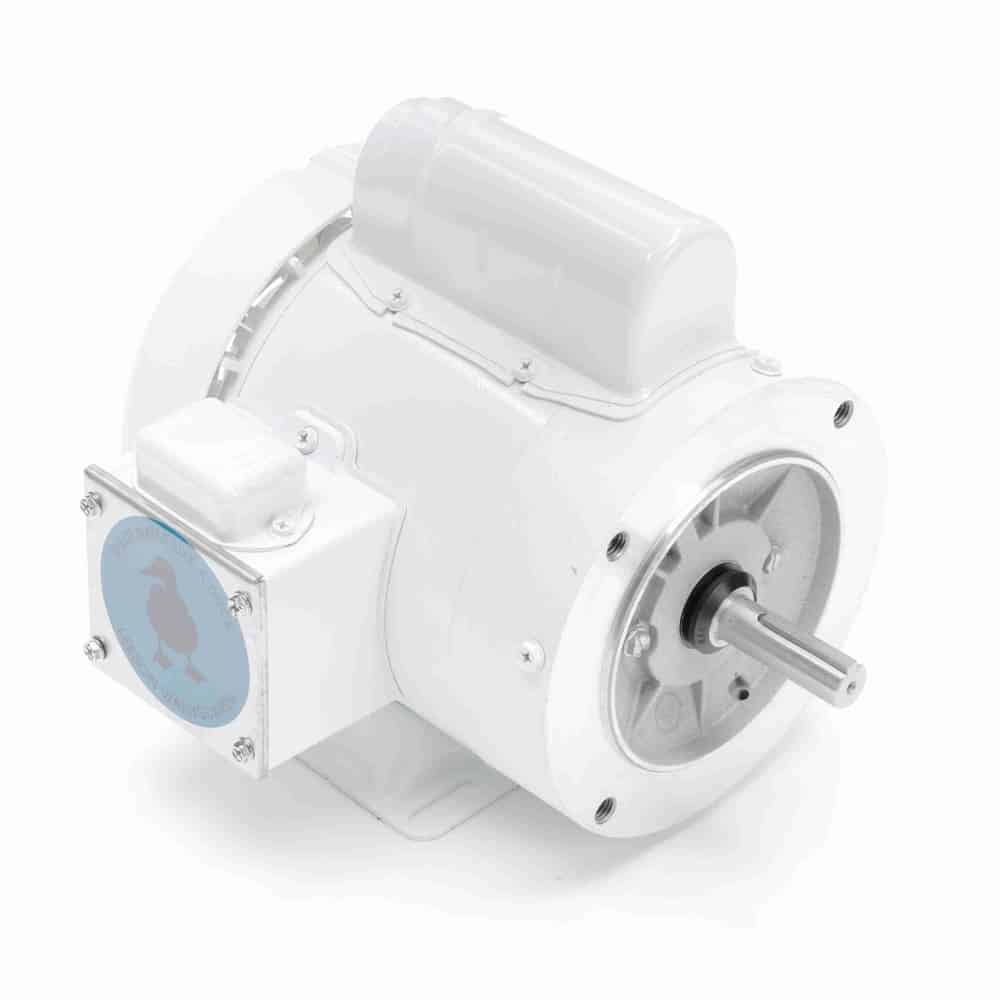

1/2HP Painted Epoxy Coated Washdown Motor, 1 Phase, 56C Frame, 3450 RPM, 1 Speed, Capacitor Start Induction Run, 115/230V, TEFC Enclosure
Contact Us For Pricing
Product Information
Brand
Leeson
Mfr #
113581.00
Wright's #
LSN 113581.00
Country of Origin
USA
Specifications
C Dim
10.37"
Electrical Type
Capacitor Start Induction Run
Enclosure
TEFC
Full Load Efficiency
63
Frame
56C
Frequency
60 Hz
HP
0.5 HP
HP2
1/2 HP
Insulation Class
F
kW
0.37kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Rigid Base
Number of Poles
2
Number of Speeds
1
Overload Protection
No Protection
Phase
1
Rated Current
7.6/3.8
Rated Voltage
115/230
Rotation
Selective Counterclockwise
RPM
3450
Service Factor
1.15
Shaft Diameter
0.625"
Speed
3450
Starting Method
Description
USDA-approved white epoxy finish ensures resistance and protection against caustic cleaning solutions.
Sealed bearings shut out contaminants that lead to bearing failure.
Stainless steel output shaft seals protect against external contaminants.
Cast, white epoxy conduit boxes house electrical wiring.
Operational at 115/208-230 V @60HZ. Nameplate image may vary from actual product.
