Leeson

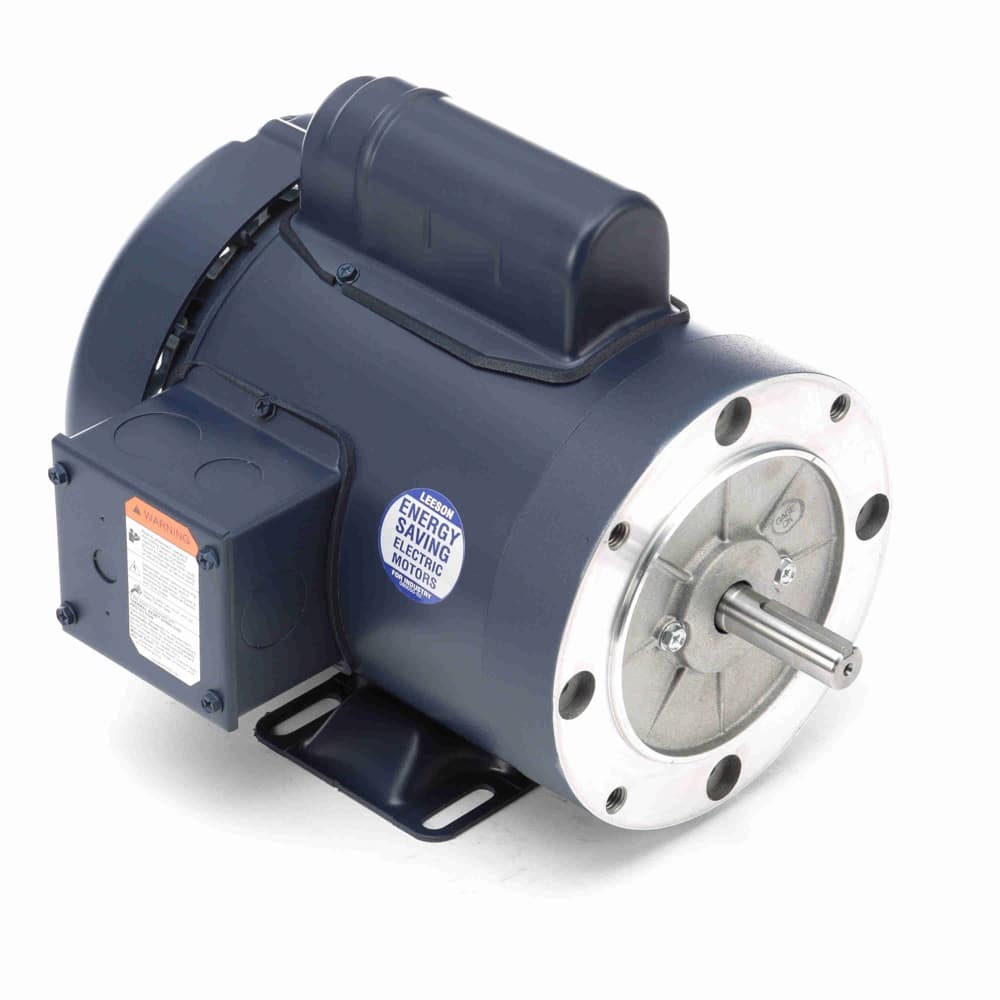

0.75HP 1PH 56C 2P TEFC 3450 115/230V WB
Mfr # 112135.00 | Wright’s # LSN 112135.00
3/4HP General Purpose Motor, 1 Phase, 56C Frame, 3450 RPM, 1 Speed, Capacitor Start Induction Run, 115/230V, TEFC Enclosure
Contact Us For Pricing
Product Information
Brand
Leeson
Mfr #
112135.00
Wright's #
LSN 112135.00
Country of Origin
USA
Specifications
C Dim
11.48"
Electrical Type
Capacitor Start Induction Run
Enclosure
TEFC
Full Load Efficiency
64
Frame
56C
Frequency
60 Hz
HP
0.75 HP
HP2
3/4 HP
Insulation Class
B
kW
0.56kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Rigid Base
Number of Poles
2
Number of Speeds
1
Overload Protection
No Protection
Phase
1
Rated Current
10.0/5.0
Rated Voltage
115/230
Rotation
Selective Counterclockwise
RPM
3450
Service Factor
1.15
Shaft Diameter
0.625"
Speed
3450
Starting Method
Description
UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
Continuous duty cycle design allows maximum operation at the rated power. specifications
Heavy-duty, rolled steel construction ensures motor durability.
Permanently lubricated sealed bearings extend the lifetime of the motor.
Capacitor start design optimizes motor torque and efficiency performance.
Operational at 115/208-230 V @60HZ. Nameplate image may vary from actual product.
