Leeson

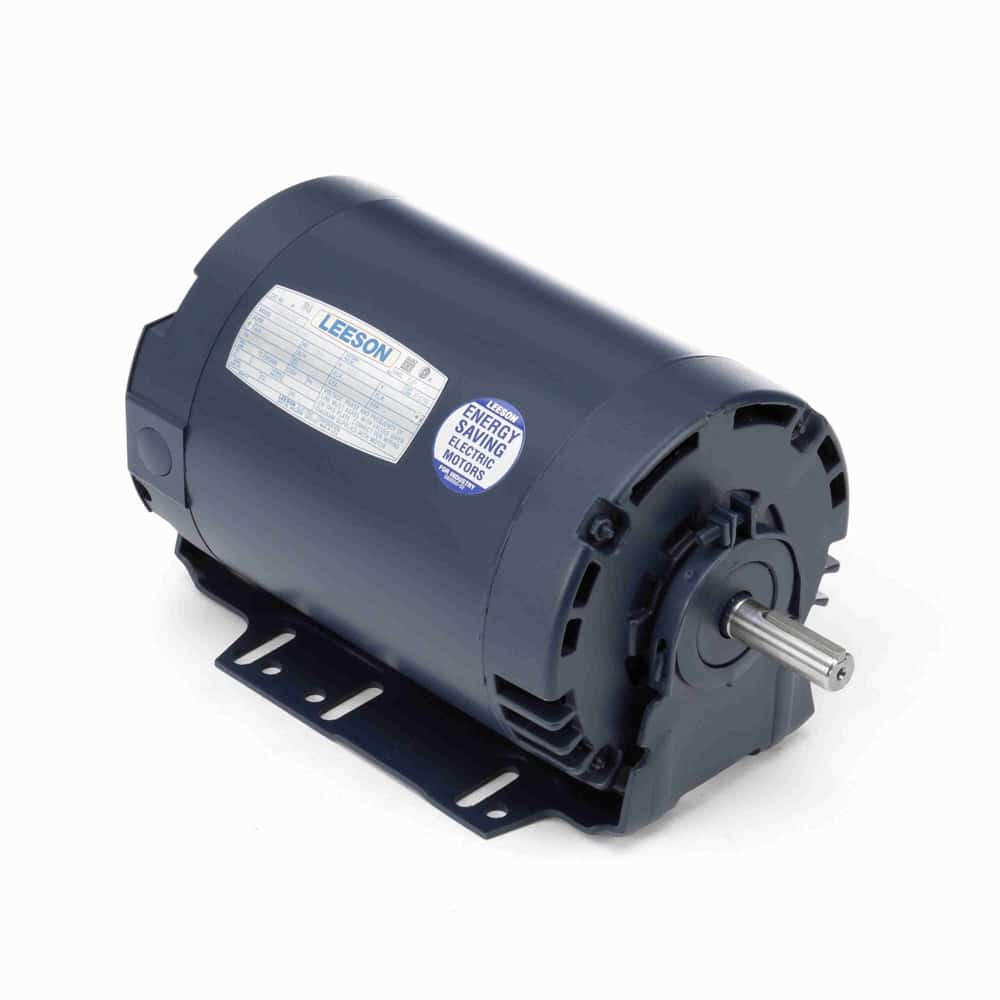

0.50HP 1PH 56H 4P DP 1725 SpP 115V
Mfr # 111953.00 | Wright’s # LSN 111953.00
1/2HP HVAC Motor, 1 Phase, 56H Frame, 1725 & 1140 RPM, 1 Speed, Split Phase, 115V, DP Enclosure
Contact Us For Pricing
Product Information
Brand
Leeson
Mfr #
111953.00
Wright's #
LSN 111953.00
Country of Origin
USA
Specifications
C Dim
12.32"
Electrical Type
Split Phase
Enclosure
DP
Full Load Efficiency
61.7
Frame
56H
Frequency
60 Hz
HP
0.5 HP
HP2
1/2 HP
Insulation Class
B
kW
0.37kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Resilient Base
Number of Poles
4
Number of Speeds
1
Overload Protection
No Protection
Phase
1
Rated Current
7.8 & 4.6
Rated Voltage
115
Rotation
Selective Counterclockwise
RPM
1725
Service Factor
1
Shaft Diameter
0.625"
Speed
1725 & 1140
Starting Method
Description
UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
Continuous duty cycle design allows maximum operation at the rated power specifications.
Cradle base offers flexibility when mounting and repositioning the motor.
Suitable for variable torque applications.
