Leeson

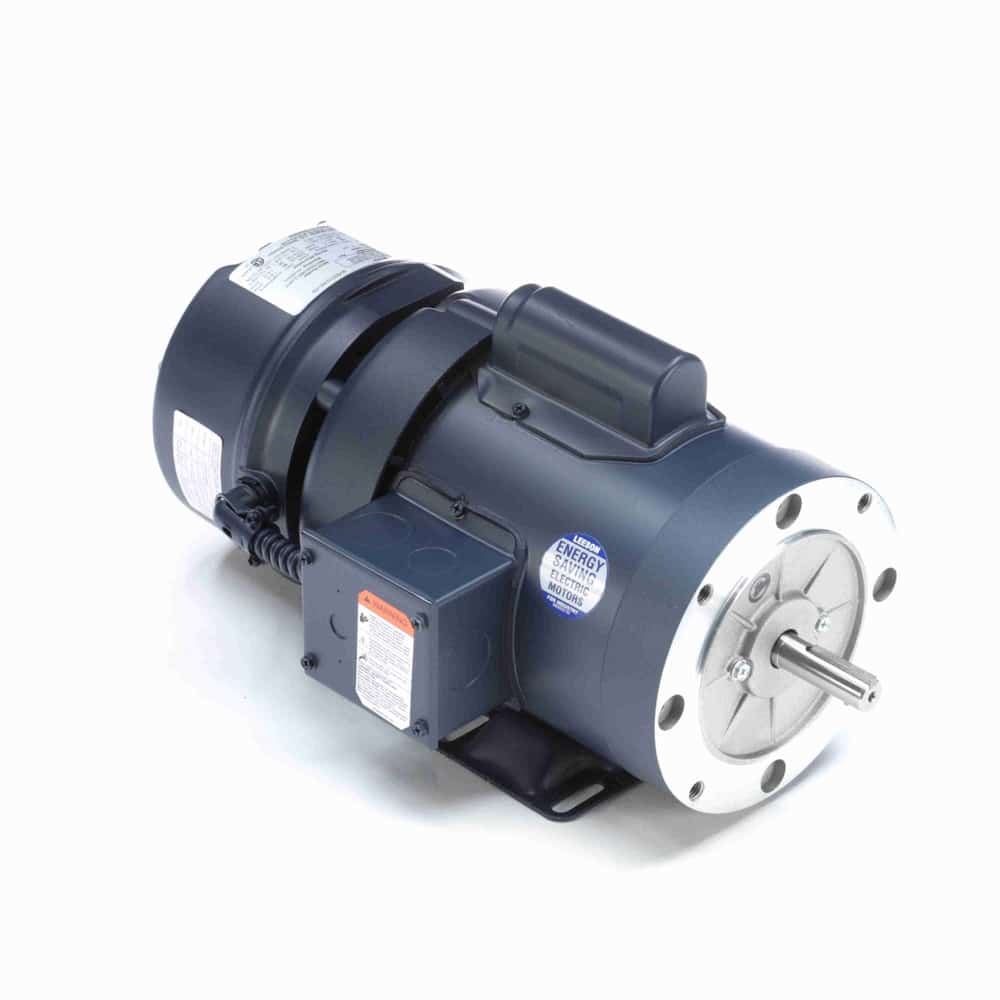

0.50HP 1PH 56C 4P TEFC 1725 115/230V WB Brake
Mfr # 111950.00 | Wright’s # LSN 111950.00
1/2HP Brake Motor, 1 Phase, 56C Frame, 1725 RPM, 1 Speed, Capacitor Start Induction Run, 115/230V, TEFC Enclosure
Contact Us For Pricing
Product Information
Brand
Leeson
Mfr #
111950.00
Wright's #
LSN 111950.00
Country of Origin
USA
Specifications
C Dim
15.73"
Electrical Type
Capacitor Start Induction Run
Enclosure
TEFC
Full Load Efficiency
66
Frame
56C
Frequency
60 Hz
HP
0.5 HP
HP2
1/2 HP
Insulation Class
B
kW
0.37kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Rigid Base
Number of Poles
4
Number of Speeds
1
Overload Protection
No Protection
Phase
1
Rated Current
8.8/4.4
Rated Voltage
115/230
Rotation
Selective Counterclockwise
RPM
1725
Service Factor
1
Shaft Diameter
0.625"
Speed
1725
Starting Method
Description
Fail-safe positive stop and holding brakes
Load stops automatically when power is turned off
Dual voltage brake coils
Single phase motor
Operational at 115/208-230 V @60HZ. Nameplate image may vary from actual product.
