Leeson

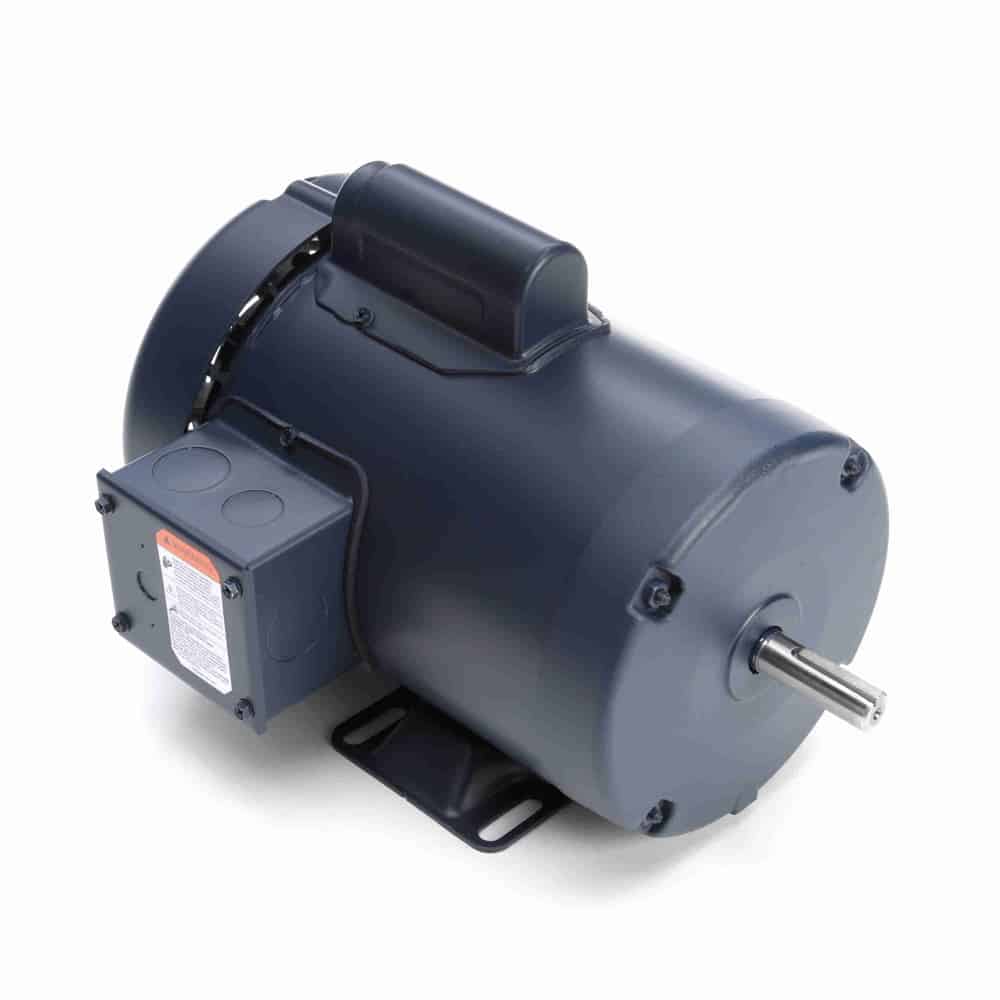

0.33HP 1PH 56 6P TEFC 1140 115/230V
Mfr # 110009.00 | Wright’s # LSN 110009.00
1/3HP General Purpose Motor, 1 Phase, 56 Frame, 1140 RPM, 1 Speed, Capacitor Start Induction Run, 115/230V, TEFC Enclosure
Contact Us For Pricing
Product Information
Brand Leeson
Mfr # 110009.00
Wright's # LSN 110009.00
Country of Origin USA
Specifications
C Dim 12.48"
Electrical Type Capacitor Start Induction Run
Enclosure TEFC
Full Load Efficiency 57.7
Frame 56
Frequency 60 Hz
HP 0.33 HP
HP2 1/3 HP
Insulation Class B
kW 0.25kW
Material Rolled Steel
Max Ambient 40°C
Mounting Type Rigid Base
Number of Poles 6
Number of Speeds 1
Overload Protection No Protection
Phase 1
Rated Current 7.8/3.9
Rated Voltage 115/230
Rotation Selective Counterclockwise
RPM 1140
Service Factor 1
Shaft Diameter 0.625"
Speed 1140
Starting Method
Description
UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
Continuous duty cycle design allows maximum operation at the rated power. specifications
Heavy-duty, rolled steel construction ensures motor durability.
Permanently lubricated sealed bearings extend the lifetime of the motor.
Capacitor start design optimizes motor torque and efficiency performance.
Operational at 115/208-230 V @60HZ. Nameplate image may vary from actual product.
