Leeson
0.50HP 48Y TEFC 42 90V DC Gear
Mfr # 108709.00 | Wright’s # LSN 108709.00

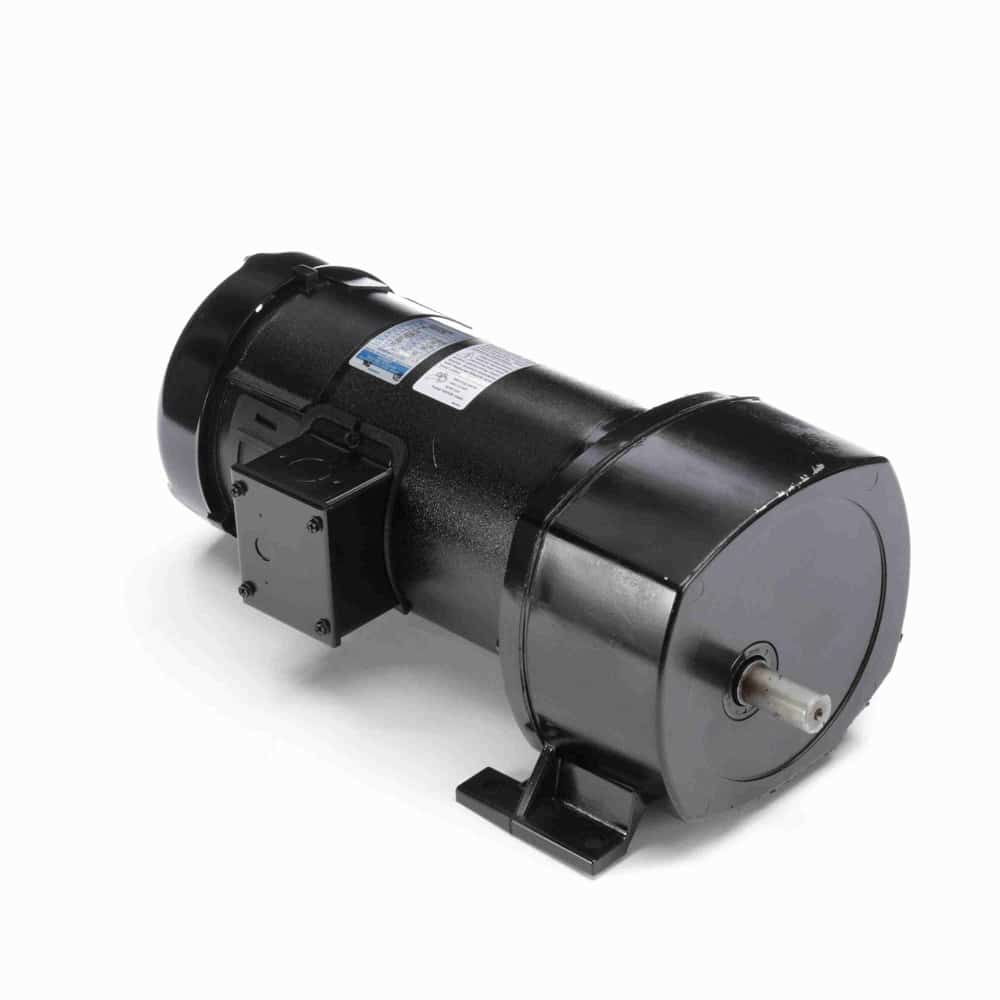

1/2HP Parallel Shaft DC Gear Motor, 48Y Frame, 42 RPM, 90V, TEFC Enclosure
Contact Us For Pricing
Product Information
Brand Leeson
Mfr # 108709.00
Wright's # LSN 108709.00
Country of Origin USA
Specifications
C Dim 16.31"
Enclosure TEFC
Full Load Efficiency 72.2
Frame 48Y
HP 0.5 HP
HP2 1/2 HP
Insulation Class F
kW 0.37kW
Max Ambient 40°C
Mounting Type Special
Overload Protection No Protection
Rated Current 5.0
Rated Voltage 90
Rotation Reversible
RPM 42
Service Factor 1
Shaft Diameter 0.75"
Speed 42
Description
Performance matched for continuous duty service.
Rugged die cast aluminum gear housing supplies maximum gear and bearing support.
Heavy duty industrial oil seals keep lubricant in and dirt out.
All gearing designed and rated to AGMA Class 9 Standards, and to withstand momentary shock overload of 200%.
