Leeson
0.50HP 3PH 48 TEFC 288 208-230/460V Gear
Mfr # 107037.00 | Wright’s # LSN 107037.00

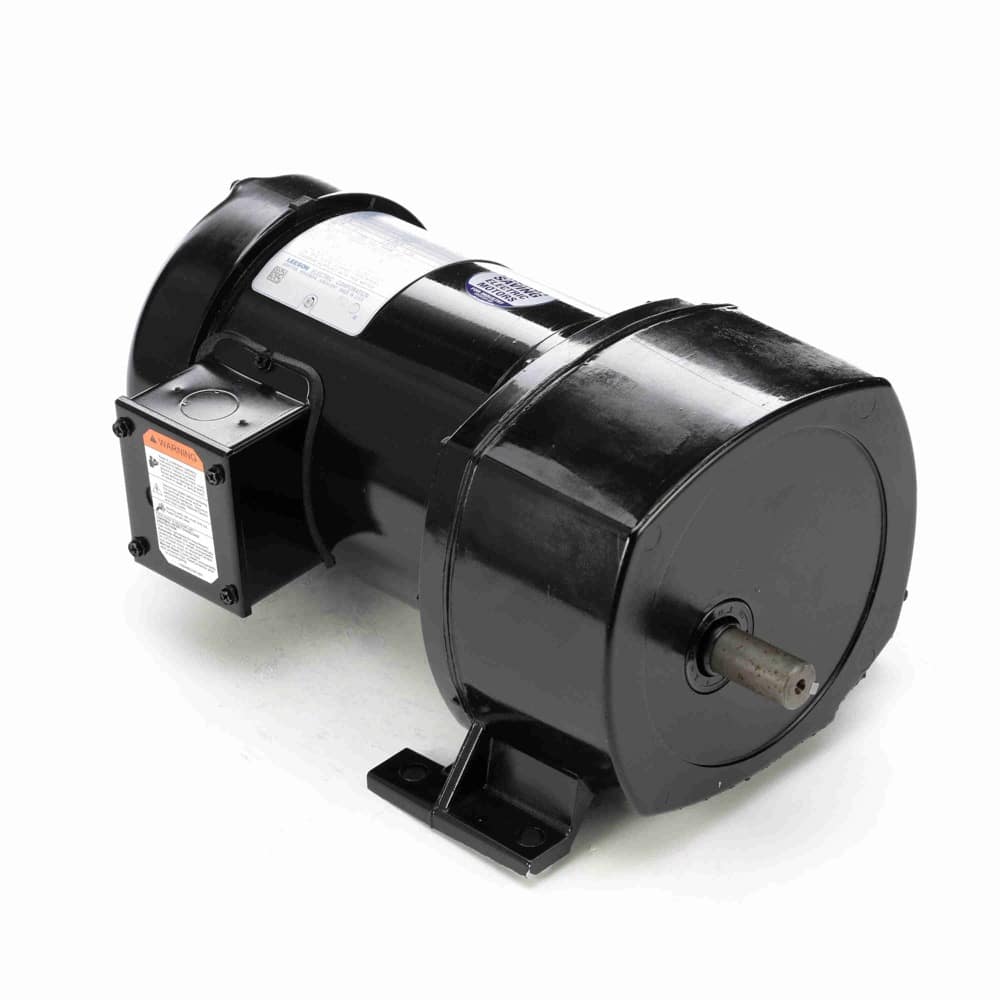

1/2HP Parallel Shaft Gear Motor, 3 Phase, 48 Frame, 288 RPM, 208-230/460V, TEFC Enclosure
Contact Us For Pricing
Product Information
Brand
Leeson
Mfr #
107037.00
Wright's #
LSN 107037.00
Country of Origin
USA
Specifications
C Dim
13.42"
Enclosure
TEFC
Full Load Efficiency
75
Frame
48
Frequency
60 Hz
HP
0.5 HP
HP2
1/2 HP
Insulation Class
F
kW
0.37kW
Max Ambient
40°C
Mounting Type
Special
Overload Protection
No Protection
Phase
3
Rated Current
2.0/1.0
Rated Voltage
208-230/460
Rotation
Reversible
RPM
288
Service Factor
1.15
Shaft Diameter
0.75"
Speed
288
Description
Rugged die cast aluminum gear housing supplies maximum gear and bearing support.
Heavy duty industrial oil seals keep lubricant in and dirt out.
All gearing designed and rated to AGMA Class 9 Standards, and to withstand momentary shock overload of 200%.
Capacitor start designs rated for 115/230 VAC 60 HZ input.
