Leeson
0.50HP 1PH 48Z 4P DP 1725 SpP 115/230V AOL
Mfr # 103796.00 | Wright’s # LSN 103796.00

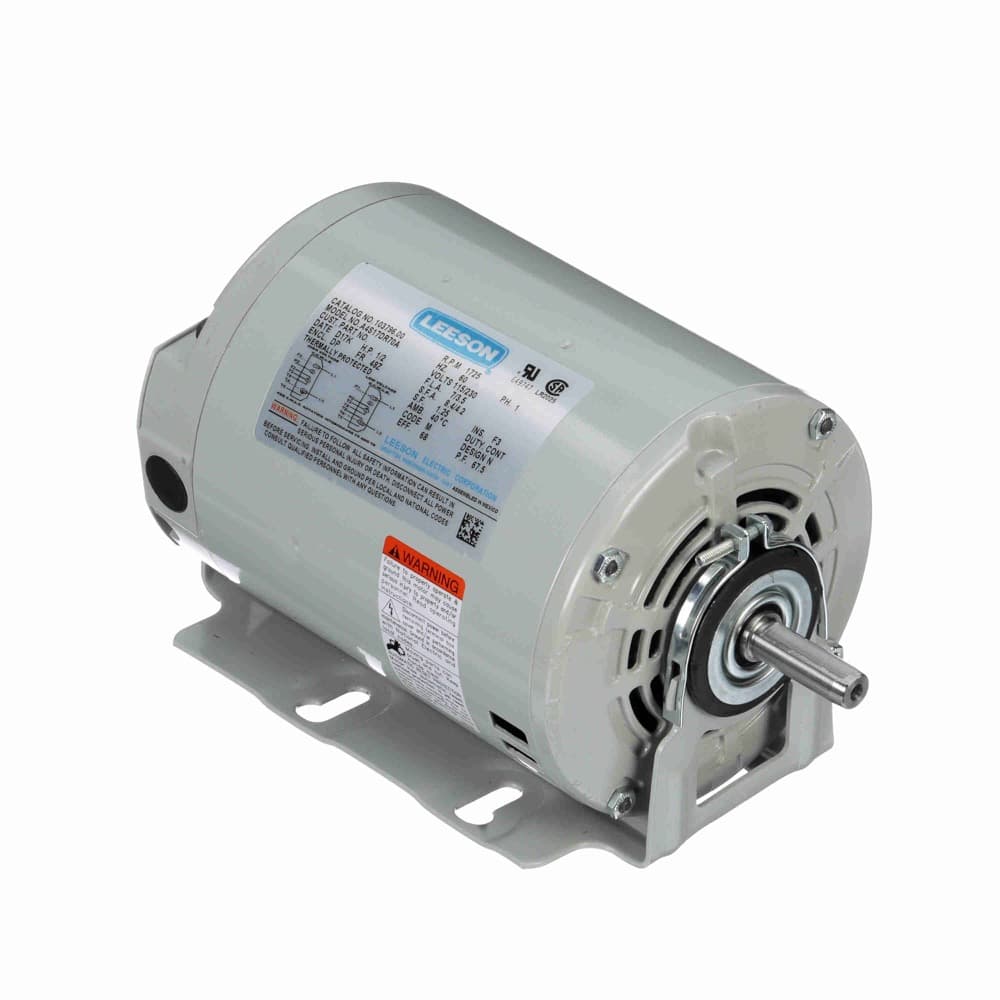

1/2HP Refrigeration Motor, 1 Phase, 48Z Frame, 1725 RPM, 1 Speed, Split Phase, 115/230V, DP Enclosure, Automatic Overload Protection
Contact Us For Pricing
Product Information
Brand
Leeson
Mfr #
103796.00
Wright's #
LSN 103796.00
Country of Origin
MEX
Specifications
C Dim
10.43"
Electrical Type
Split Phase
Enclosure
DP
Full Load Efficiency
68
Frame
48Z
Frequency
60 Hz
HP
0.5 HP
HP2
1/2 HP
Insulation Class
F
kW
0.37kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Resilient Base
Number of Poles
4
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
7.0/3.5
Rated Voltage
115/230
Rotation
Selective Counterclockwise
RPM
1725
Service Factor
1.25
Shaft Diameter
0.5"
Speed
1725
Starting Method
Description
Split phase design motors
Belt driven or fan-on-shaft applications
Resilient base for quiet operation
Automatic overload protection
Built-in terminal panel for easy connection
