Leeson

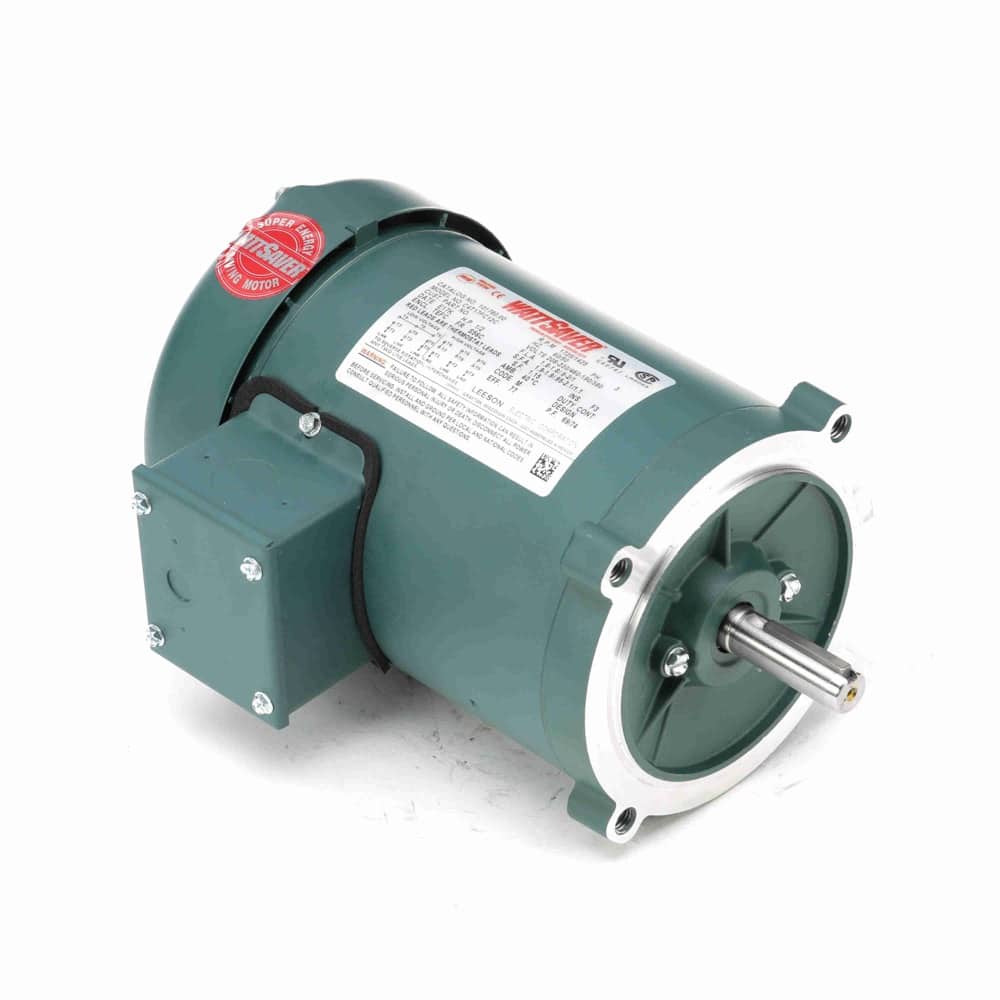

0.50HP 3PH 56C 4P TEFC 1725 230/460V TS NB
Mfr # 101780.00 | Wright’s # LSN 101780.00
1/2HP General Purpose Motor, 3 Phase, 56C Frame, 1725 & 1425 RPM, 1 Speed, Squirrel Cage Inverter Rated, 230/460V, TEFC Enclosure, Thermostat Overload Protection
Contact Us For Pricing
Product Information
Brand
Leeson
Mfr #
101780.00
Wright's #
LSN 101780.00
Country of Origin
MEX
Specifications
C Dim
10.69"
Electrical Type
Squirrel Cage Inverter Rated
Enclosure
TEFC
Full Load Efficiency
77
Frame
56C
Frequency
60 Hz
HP
0.5 HP
HP2
1/2 HP
Insulation Class
F
kW
0.37kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Round
Number of Poles
4
Number of Speeds
1
Overload Protection
Thermostat
Phase
3
Rated Current
1.8/.9 & 2/1
Rated Voltage
230/460
Rotation
Reversible
RPM
1725
Service Factor
1.15
Shaft Diameter
0.625"
Speed
1725 & 1425
Starting Method
Description
UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
Continuous duty cycle design allows maximum operation at the rated power specifications.
Class B or F Insulation protects motor for a maximum temperature rating.
Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
Operational at 208-230/460 V @60HZ. Nameplate image may vary from actual product.
