Leeson

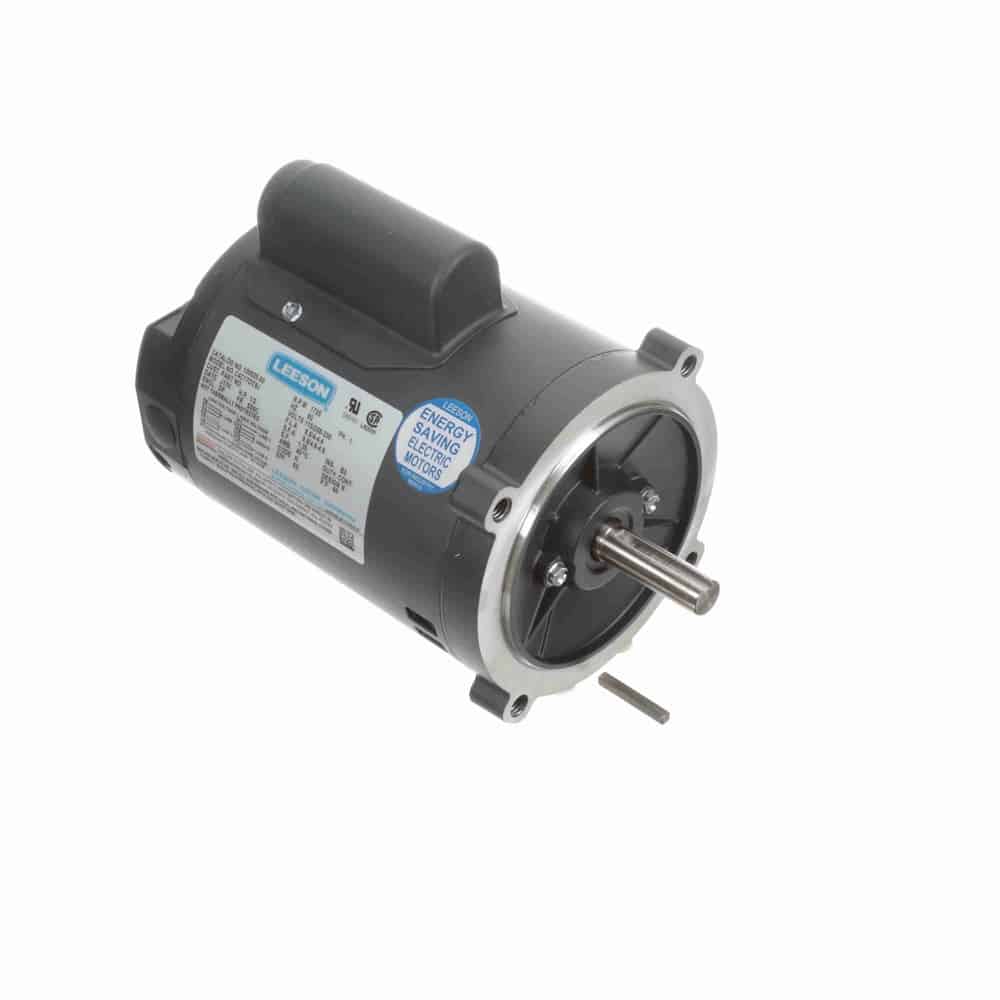

0.50HP 1PH 56C 4P DP 1725 115/208-230V NB
Mfr # 100025.00 | Wright’s # LSN 100025.00
1/2HP General Purpose Motor, 1 Phase, 56C Frame, 1725 RPM, 1 Speed, Capacitor Start Induction Run, 115/208-230V, DP Enclosure
Contact Us For Pricing
Product Information
Brand
Leeson
Mfr #
100025.00
Wright's #
LSN 100025.00
Country of Origin
MEX
Specifications
C Dim
9.99"
Electrical Type
Capacitor Start Induction Run
Enclosure
DP
Full Load Efficiency
62
Frame
56C
Frequency
60 Hz
HP
0.5 HP
HP2
1/2 HP
Insulation Class
B
kW
0.37kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Round
Number of Poles
4
Number of Speeds
1
Overload Protection
No Protection
Phase
1
Rated Current
8.8/4.0-4.4
Rated Voltage
115/208-230
Rotation
Selective Counterclockwise
RPM
1725
Service Factor
1.25
Shaft Diameter
0.625"
Speed
1725
Starting Method
Description
Durable rolled steel construction
NEMA design B performance
Meets or exceeds NEMA service factors
Double shielded ball bearings
Continuous duty
Thermally protected ratings
UL recognized component listing and CSA certified
