Genteq

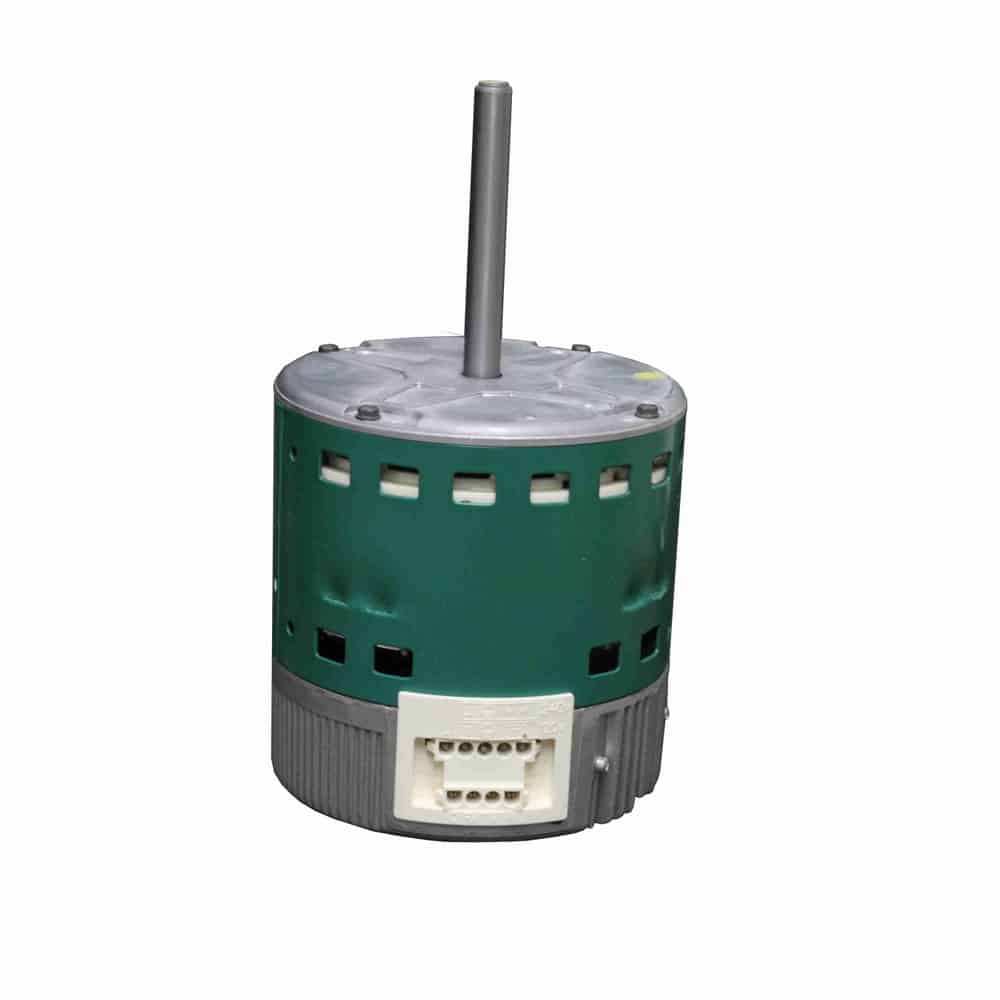

1HP ECM 5.6″ OAO 1050 REV 120/240V BM
Mfr # 6510V | Wright’s # GEN 6510V
1HP Fan & Blower Motor, 1 Phase, 5.6″ Frame, 1050 RPM, 1 Speed, Electronically Commutated Motor, 120/240V, OAO Enclosure
Contact Us For Pricing
Product Information
Brand
Genteq
Sub-Brand
EVERGREEN® VS
Mfr #
6510V
Wright's #
GEN 6510V
Country of Origin
MEX
Specifications
C Dim
12.71"
Electrical Type
Electronically Commutated Motor
Enclosure
OAO
Frame
5.6"
Frequency
60/50 Hz
HP
1 HP
HP2
1 HP
Insulation Class
B
kW
0.75kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
12
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
12.8/7.4
Rated Voltage
120/240
Rotation
Counterclockwise/Clockwise
RPM
1050
Service Factor
1
Shaft Diameter
0.5"
Speed
1050
Description
Evergreen VS – ECM Variable Speed Replacement Motor
5.6″ Diameter – 48 Frame
Electronically Commutated (ECM)
Electronically Protected
Open Air Over
Class B Insulation, 45°C Ambient
Ball Bearing
1/2″ Diameter Shaft with FlatЌ” Leads
***Application May Require User Interface Catalog Number 5K010 or 5K010V. For Additional Information Refer to “Evergreen® VS Motors” Product Page, or Search “Motor Cross Reference” in “Tools & Resources” for OEM Replacement Cross.
