Genteq

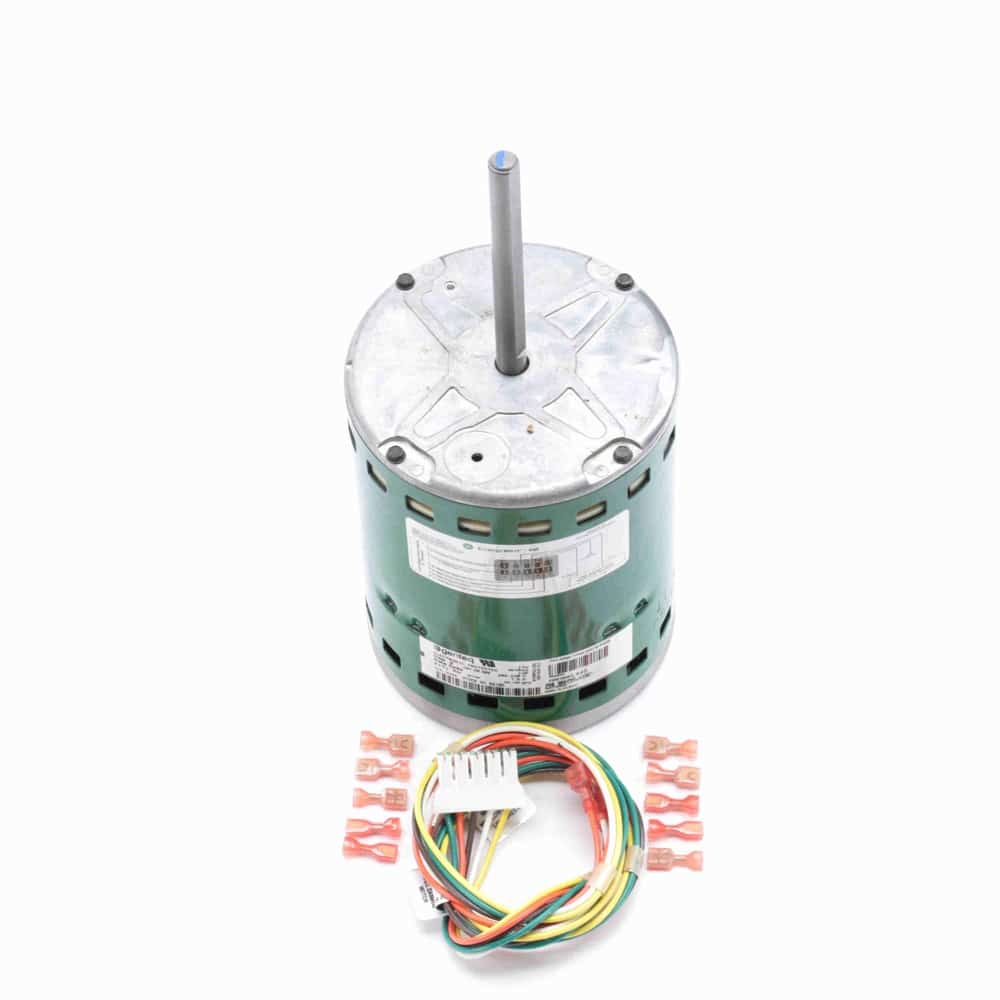

1HP ECM 5.6″ OAO 1075 REV 208-230V BM
Mfr # 6210E | Wright’s # GEN 6210E
1HP Fan & Blower Motor, 1 Phase, 5.6″ Frame, 1075 RPM, 1 Speed, Electronically Commutated Motor, 208-230V, OAO Enclosure
Contact Us For Pricing
Product Information
Brand
Genteq
Sub-Brand
EVERGREEN® EM
Mfr #
6210E
Wright's #
GEN 6210E
Specifications
C Dim
12.2"
Electrical Type
Electronically Commutated Motor
Enclosure
OAO
Frame
5.6"
Frequency
60/50 Hz
HP
1 HP
HP2
1 HP
Insulation Class
B
kW
0.75kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
12
Number of Speeds
1
Overload Protection
No Protection
Phase
1
Rated Current
7.6
Rated Voltage
208-230
Rotation
Counterclockwise/Clockwise
RPM
1075
Service Factor
1
Shaft Diameter
0.5"
Speed
1075
Description
Evergreen EM – ECM Replacement Blower Motor
5.6″ Diameter – 48 Frame
Electronically Commutated (ECM), Electronically Protected
Up to five constant torque settings controlled by 24 VAC inputs
Fully variable (PWM compatible) from 600-1100 RPM
Open Air Over, Class B Insulation, 45°C Ambient
Ball Bearing
1/2″ Diameter Shaft with FlatВ” Leads
Belly Band Mount (Belly Band Not Included)
