Genteq

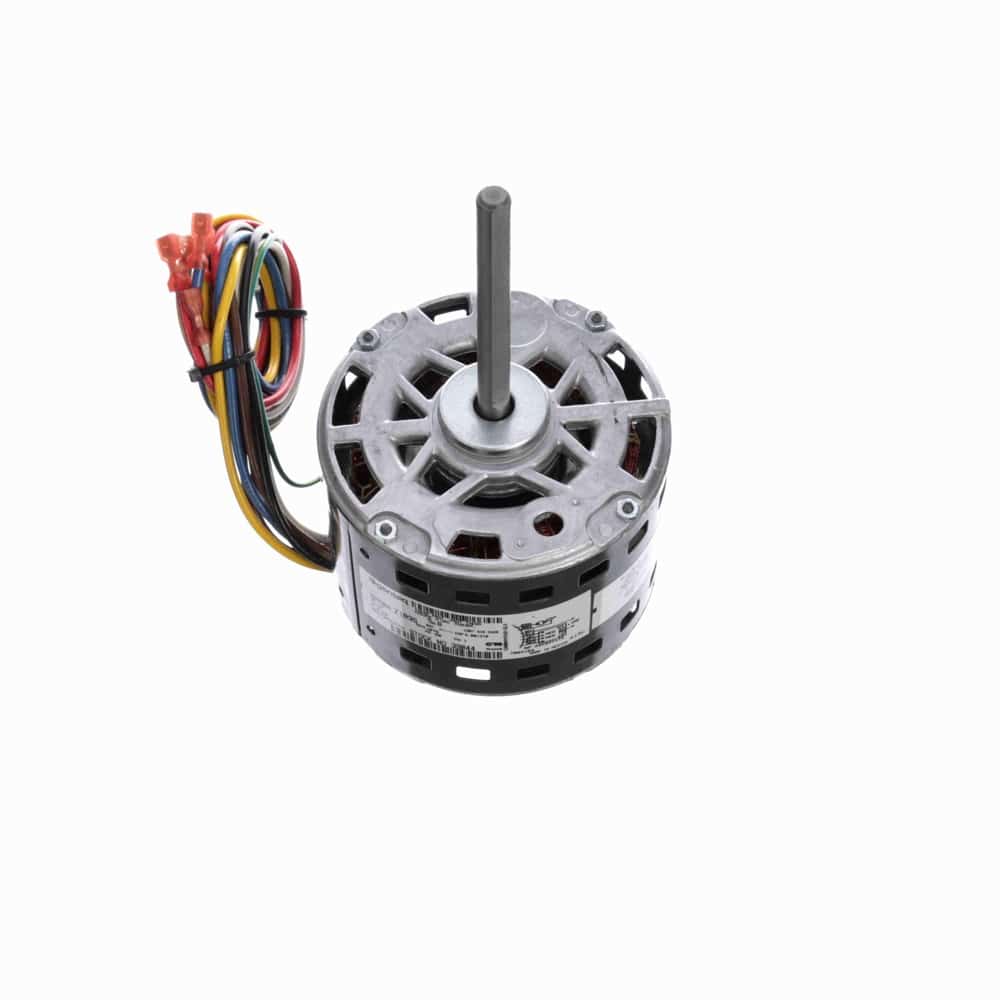

1/3HP PSC 5.6″ OAO 4spd 1075 CWSE 115V 5uF
Mfr # 3S044 | Wright’s # GEN 3S044
1/3HP OEM Replacement Motor, 1 Phase, 5.6″ Frame, 1075 RPM, 4 Speed, Permanent Split Capacitor, 115V, OAO Enclosure
Contact Us For Pricing
Product Information
Brand
Genteq
Mfr #
3S044
Wright's #
GEN 3S044
Specifications
C Dim
9.39"
Electrical Type
Permanent Split Capacitor
Enclosure
OAO
Frame
5.6"
Frequency
60 Hz
HP
0.33 HP
HP2
1/3 HP
Insulation Class
B
kW
0.25kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
6
Number of Speeds
4
Overload Protection
Thermally Protected
Phase
1
Rated Current
5.20
Rated Voltage
115
Rotation
Counterclockwise
RPM
1075
Service Factor
1
Shaft Diameter
0.5"
Speed
1075
Description
OEM Direct Replacement Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Design Upgrade, Converting From Sleeve Bearing to Ball Bearing
1/2″ Diameter Shaft with FlatЇ” Leads
Extended Clampbolts, Belly Band
120V
