Genteq

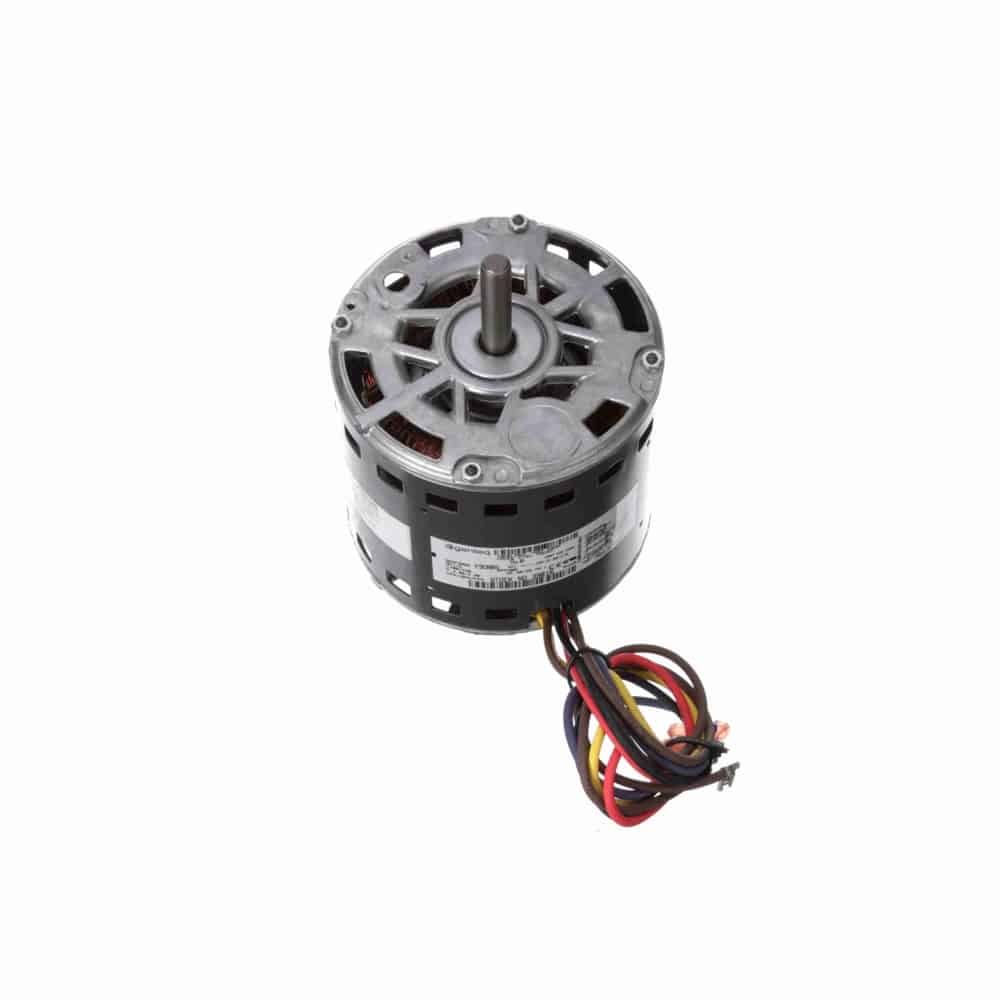

1/3HP PSC 5.6″ OAO 2spd 900 CWSE 200/230V 15uF
Mfr # 3S016 | Wright’s # GEN 3S016
1/3HP OEM Replacement Motor, 1 Phase, 5.6″ Frame, 900 RPM, 2 Speed, Permanent Split Capacitor, 200/230V, OAO Enclosure
Contact Us For Pricing
Product Information
Brand
Genteq
Mfr #
3S016
Wright's #
GEN 3S016
Specifications
C Dim
7.31"
Electrical Type
Permanent Split Capacitor
Enclosure
OAO
Frame
5.6"
Frequency
60 Hz
HP
0.33 HP
HP2
1/3 HP
Insulation Class
B
kW
0.25kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
6
Number of Speeds
2
Overload Protection
Thermally Protected
Phase
1
Rated Current
2.00/2.80
Rated Voltage
200/230
Rotation
Counterclockwise
RPM
900
Service Factor
1
Shaft Diameter
0.5"
Speed
900
Description
OEM Direct Replacement Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 15 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/2″ Diameter Shaft with FlatϷ” Leads
Extended Clampbolts, Mounting Holes in shell, Belly Band Mount (Belly Band Not Included)
