Genteq
1/3HP PSC 5.6″ OAO 2spd 1110 CCWSE 208-230V 5uF
Mfr # 3909 | Wright’s # GEN 3909

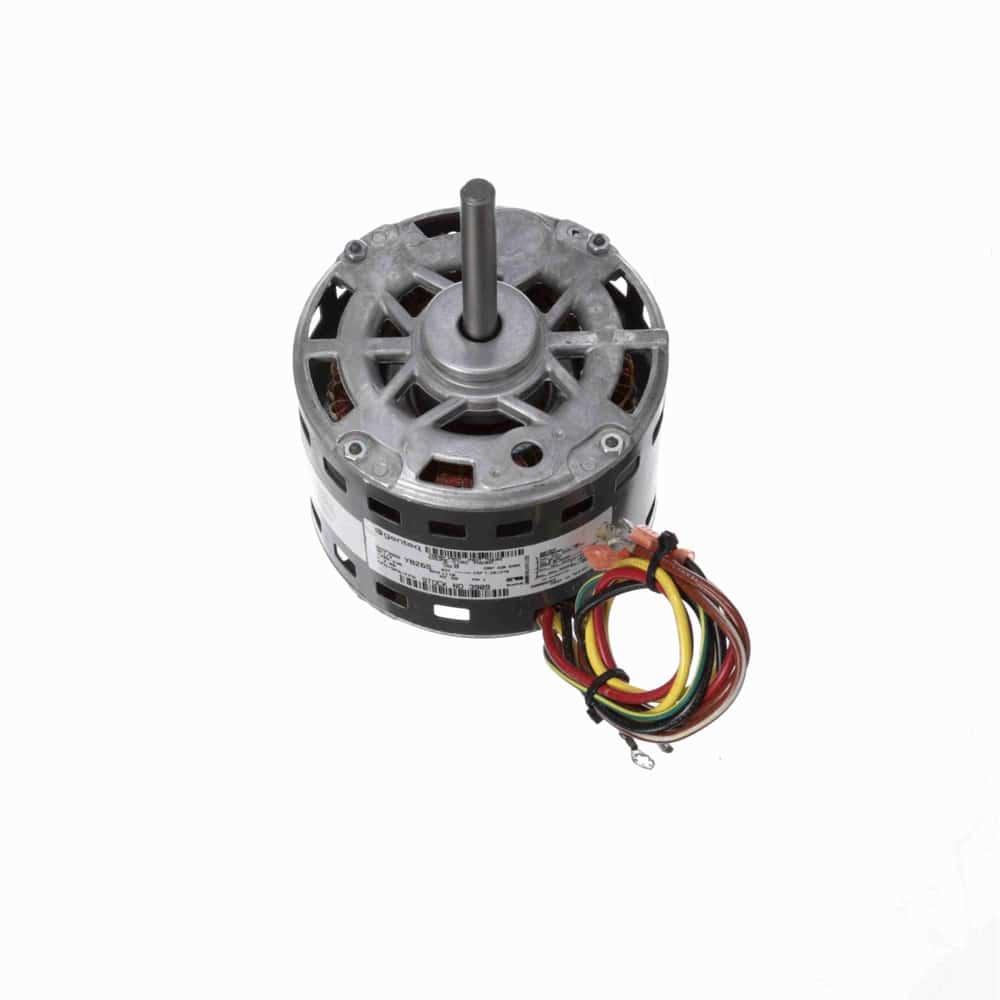

1/3HP OEM Replacement Motor, 1 Phase, 5.6″ Frame, 1110 RPM, 2 Speed, Permanent Split Capacitor, 208-230V, OAO Enclosure
Contact Us For Pricing
Product Information
Brand
Genteq
Mfr #
3909
Wright's #
GEN 3909
Country of Origin
MEX
Specifications
C Dim
8.14"
Electrical Type
Permanent Split Capacitor
Enclosure
OAO
Frame
5.6"
Frequency
60 Hz
HP
0.33 HP
HP2
1/3 HP
Insulation Class
B
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
6
Number of Speeds
2
Overload Protection
Thermally Protected
Phase
1
Rated Current
2.00
Rated Voltage
208-230
Rotation
Clockwise
RPM
1110
Service Factor
1
Shaft Diameter
0.5"
Speed
1110
Description
OEM Direct Replacement Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/2″ Diameter Shaft with Flat϶” Leads
Extended Clampbolts, Belly Band
