Genteq
1/8HP PSC 5.6″ TE 1650 CWSE 208-230V 4uF
Mfr # 3904 | Wright’s # GEN 3904

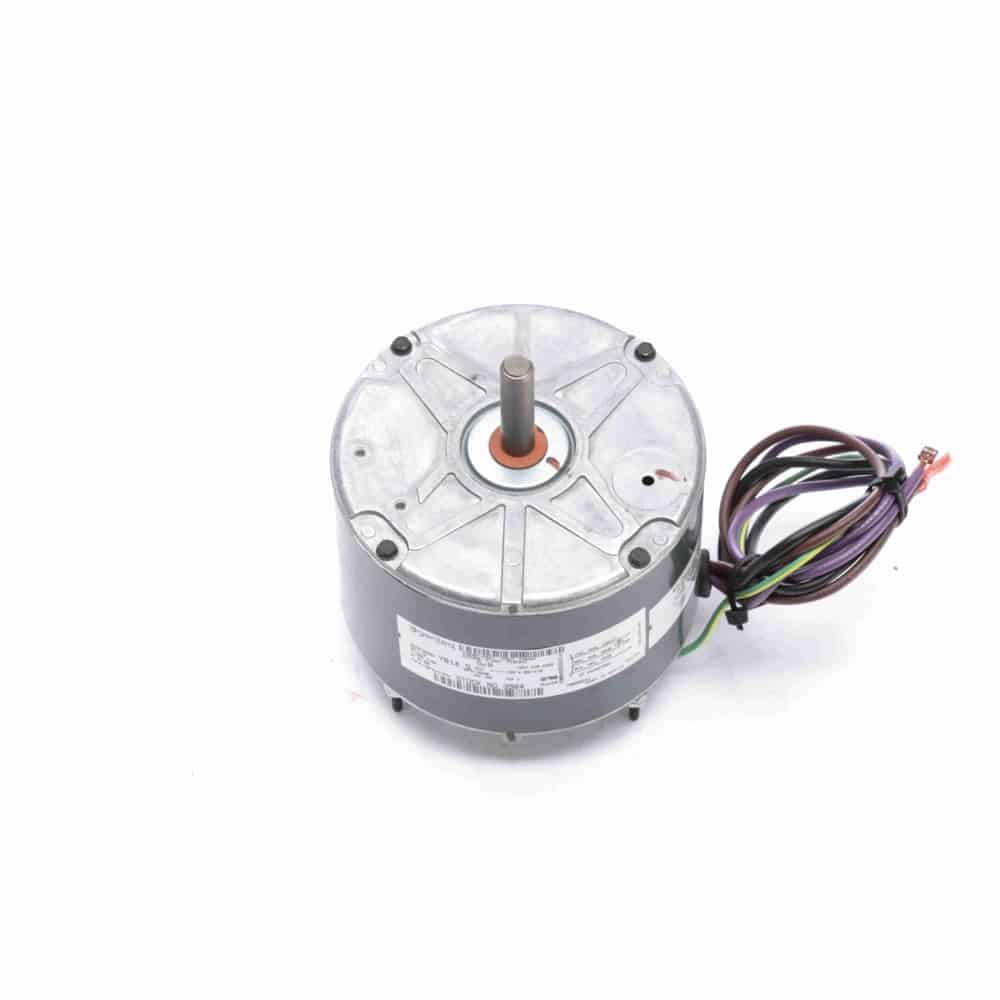

1/8HP OEM Replacement Motor, 1 Phase, 5.6″ Frame, 1650 RPM, 1 Speed, Permanent Split Capacitor, 208-230V, TE Enclosure
Contact Us For Pricing
Product Information
Brand
Genteq
Mfr #
3904
Wright's #
GEN 3904
Country of Origin
MEX
Specifications
C Dim
6.06"
Electrical Type
Permanent Split Capacitor
Enclosure
TEAO
Frame
5.6"
Frequency
60 Hz
HP
0.13 HP
HP2
1/8 HP
Insulation Class
B
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
0.80
Rated Voltage
208-230
Rotation
Counterclockwise
RPM
1650
Service Factor
1
Shaft Diameter
0.5"
Speed
1650
Description
OEM Direct Replacement Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 4 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Totally Enclosed Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/2″ Diameter Shaft with FlatϿ” Leads
Belly Band
