Genteq
1/4HP PSC 5.6″ OAO 1075 REV 208-230V 5uF CF
Mfr # 3328 | Wright’s # GEN 3328

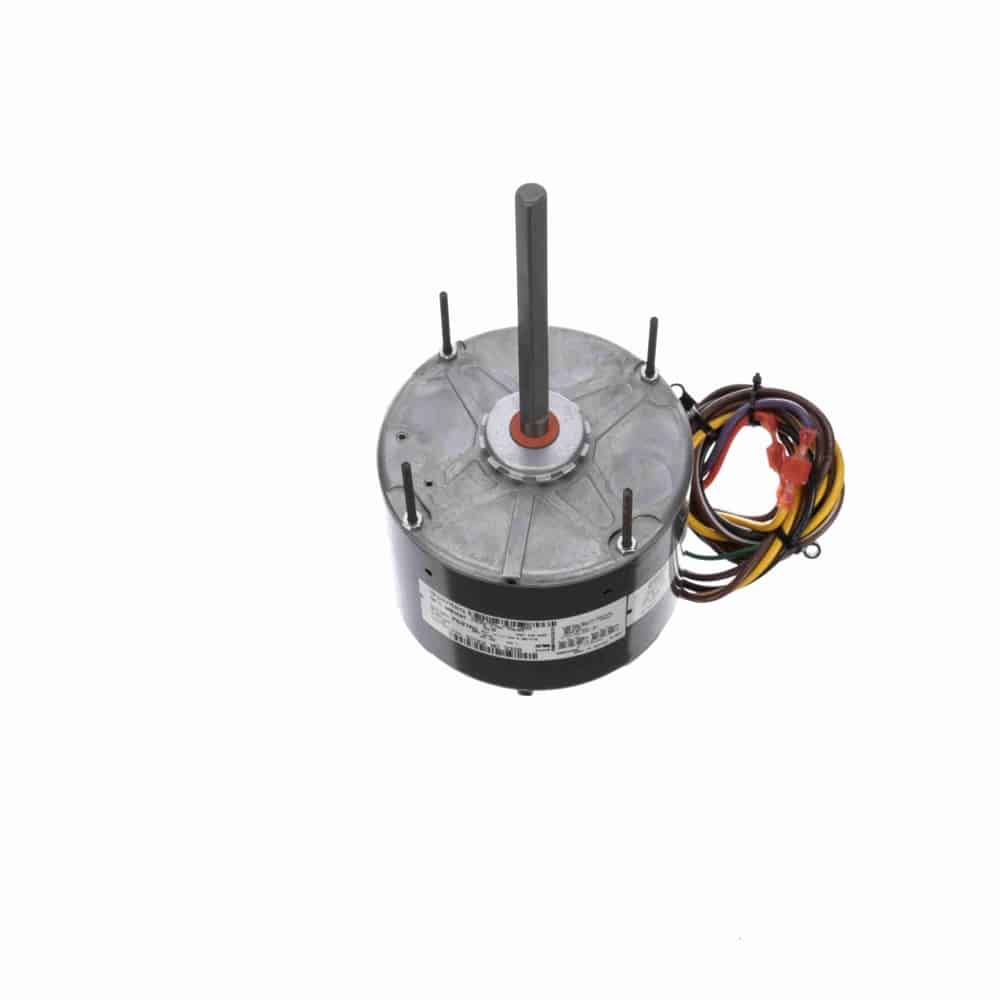

1/4HP Condenser Fan Motor, 1 Phase, 5.6″ Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 208-230V, OAO Enclosure
$137.40
Product Information
Brand
Genteq
Mfr #
3328
Wright's #
GEN 3328
Specifications
C Dim
11.13"
Electrical Type
Permanent Split Capacitor
Enclosure
OAO
Frame
5.6"
Frequency
60 Hz
HP
0.25 HP
HP2
1/4 HP
Insulation Class
B
Material
Rolled Steel
Max Ambient
60°C
Number of Poles
6
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
1.80
Rated Voltage
208-230
Rotation
Reversible
RPM
1075
Service Factor
1
Shaft Diameter
0.5"
Speed
1075
Description
Condenser Fan – Heat Pump Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Totally Enclosed Air Over
Class B Insulation, 60°C Ambient
Sleeve Bearing
1/2″ Diameter Shaft with Double FlatЂ” Leads
Shaft Up/Horizontal, Extended Pulley End Clampbolts, Belly Band Mount (Belly Band Not Included)
