Genteq

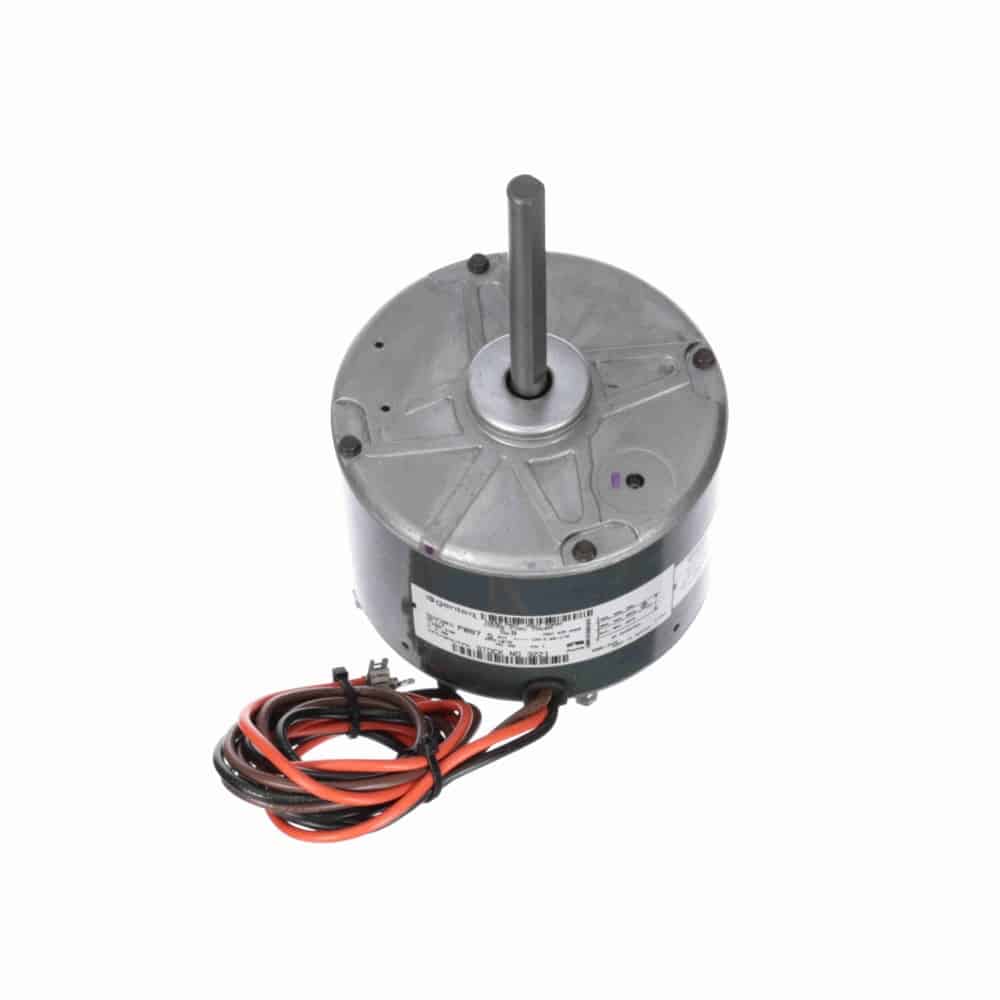

1/3HP PSC 5.6″ TE 1075 CWSE 208-230V 5uF
Mfr # 3221 | Wright’s # GEN 3221
1/3HP OEM Replacement Motor, 1 Phase, 5.6″ Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 208-230V, TE Enclosure
Contact Us For Pricing
Product Information
Brand Genteq
Mfr # 3221
Wright's # GEN 3221
Country of Origin MEX
Specifications
C Dim 8.45"
Electrical Type Permanent Split Capacitor
Enclosure TEAO
Frame 5.6"
Frequency 60 Hz
HP 0.33 HP
HP2 1/3 HP
Insulation Class B
kW 0.25kW
Material Rolled Steel
Max Ambient 40°C
Number of Poles 6
Number of Speeds 1
Overload Protection Thermally Protected
Phase 1
Rated Current 2.00
Rated Voltage 208-230
Rotation Counterclockwise
RPM 1075
Service Factor 1
Shaft Diameter 0.5"
Speed 1075
Description
OEM Direct Replacement Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Totally Enclosed Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/2″ Diameter Shaft with Double FlatВ” Leads
Belly Band
