Genteq

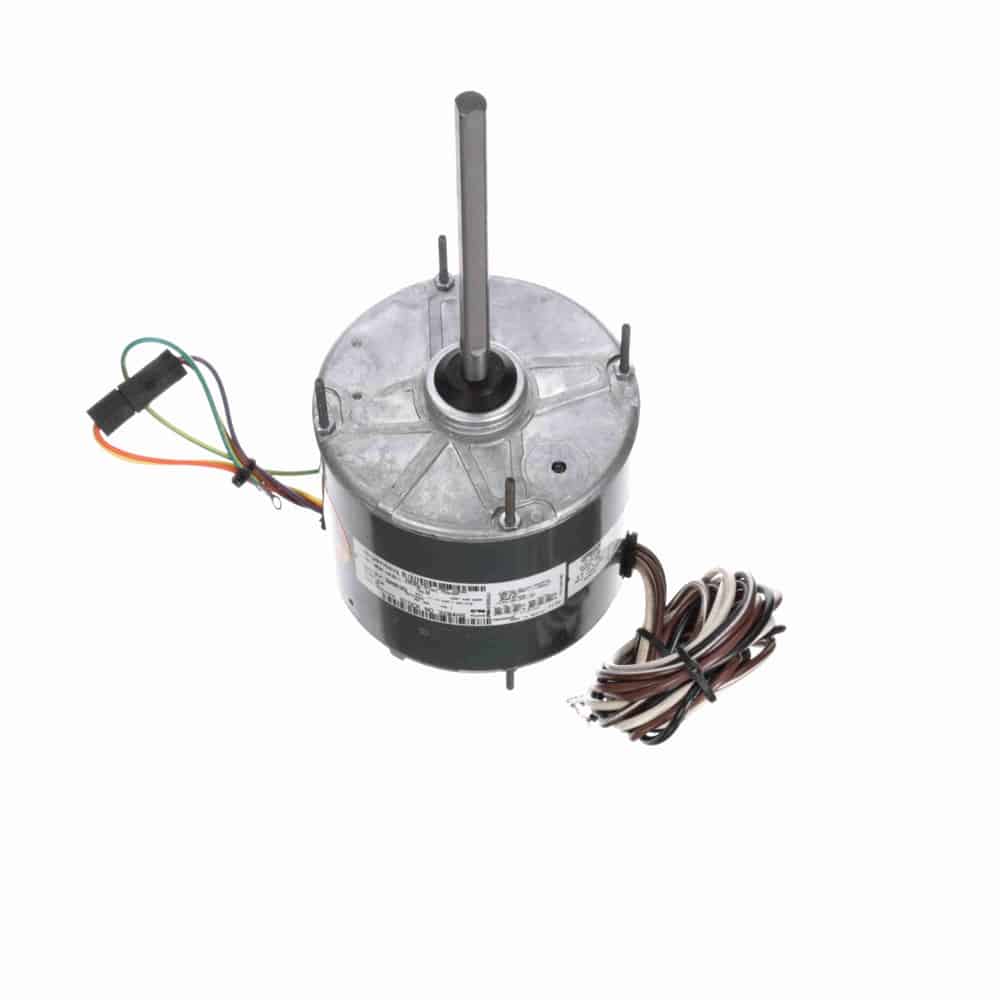

1/4HP PSC 5.6″ TE 825 REV 208-230V 5uF CF
Mfr # 3204HS | Wright’s # GEN 3204HS
1/4HP Condenser Fan Motor, 1 Phase, 5.6″ Frame, 825 RPM, 1 Speed, Permanent Split Capacitor, 208-230V, TE Enclosure
Contact Us For Pricing
Product Information
Brand
Genteq
Sub-Brand
HEAT SHIELD®
Mfr #
3204HS
Wright's #
GEN 3204HS
Specifications
C Dim
11.96"
Electrical Type
Permanent Split Capacitor
Enclosure
TEAO
Frame
5.6"
Frequency
60 Hz
HP
0.25 HP
HP2
1/4 HP
Insulation Class
B
kW
0.19kW
Material
Rolled Steel
Max Ambient
70°C
Number of Poles
8
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
1.30
Rated Voltage
208-230
Rotation
Reversible
RPM
825
Service Factor
1
Shaft Diameter
0.5"
Speed
825
Description
Heat Shield – Condenser Fan Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Totally Enclosed Air Over
Class B Insulation, 70°C Ambient
Ball Bearing
1/2″ Diameter Shaft with Double FlatИ” Leads
Extended Clampbolts, Mounting Holes in shell, Belly Band Mount (Belly Band Not Included)
