Genteq

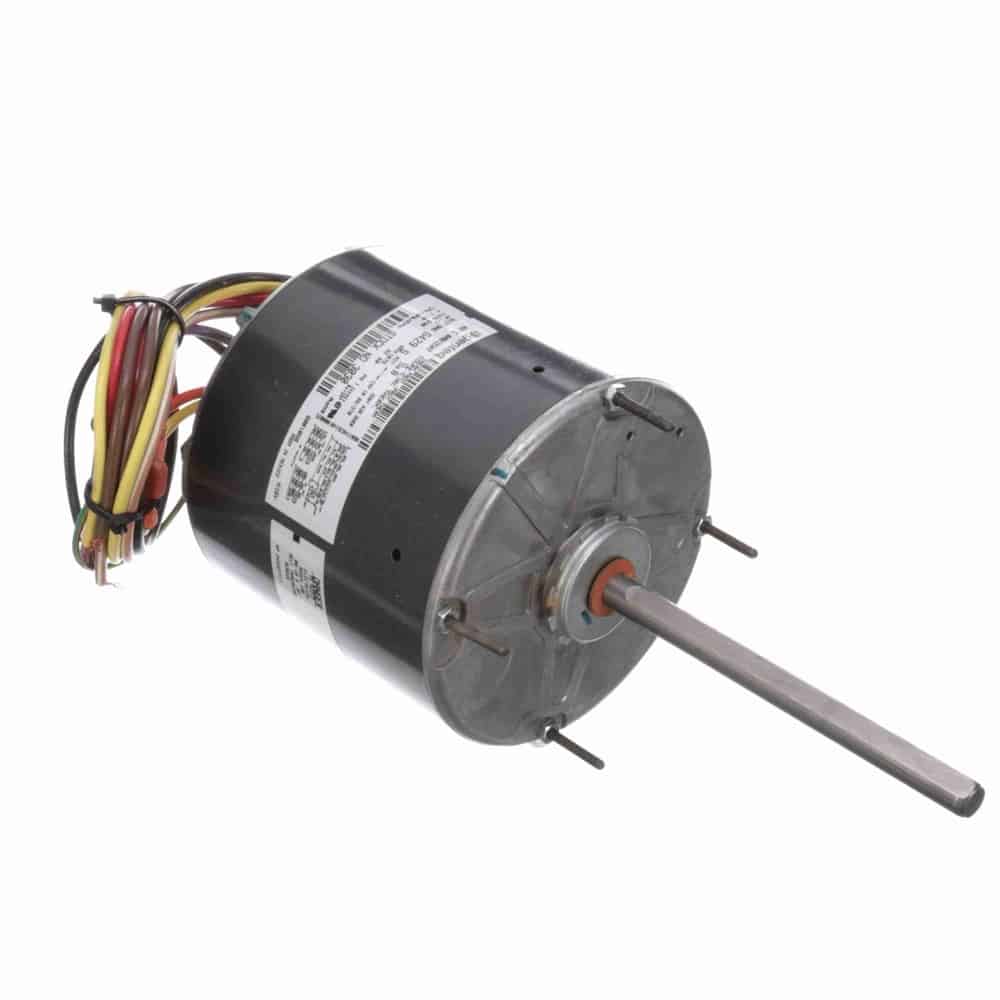

1/2HP PSC 5.6″ OAO 2spd 1075 REV 208-230V 10uF CF
Mfr # 3030 | Wright’s # GEN 3030
1/2HP Condenser Fan Motor, 1 Phase, 5.6″ Frame, 1075 RPM, 2 Speed, Permanent Split Capacitor, 208-230V, OAO Enclosure
$130.77
Product Information
Brand Genteq
Mfr # 3030
Wright's # GEN 3030
Country of Origin MEX
Specifications
C Dim 12.38"
Electrical Type Permanent Split Capacitor
Enclosure OAO
Frame 5.6"
Frequency 60 Hz
HP 0.5 HP
HP2 1/2 HP
Insulation Class B
kW 0.37kW
Material Rolled Steel
Max Ambient 40°C
Number of Poles 6
Number of Speeds 2
Overload Protection Thermally Protected
Phase 1
Rated Current 3.50
Rated Voltage 208-230
Rotation Reversible
RPM 1075
Service Factor 1
Shaft Diameter 0.5"
Speed 1075
Description
Condenser Fan – Heat Pump Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 10 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Totally Enclosed Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/2″ Diameter Shaft with Double FlatЂ” Leads
Shaft Up/Horizontal, Extended Pulley End Clampbolts, Belly Band
