Genteq

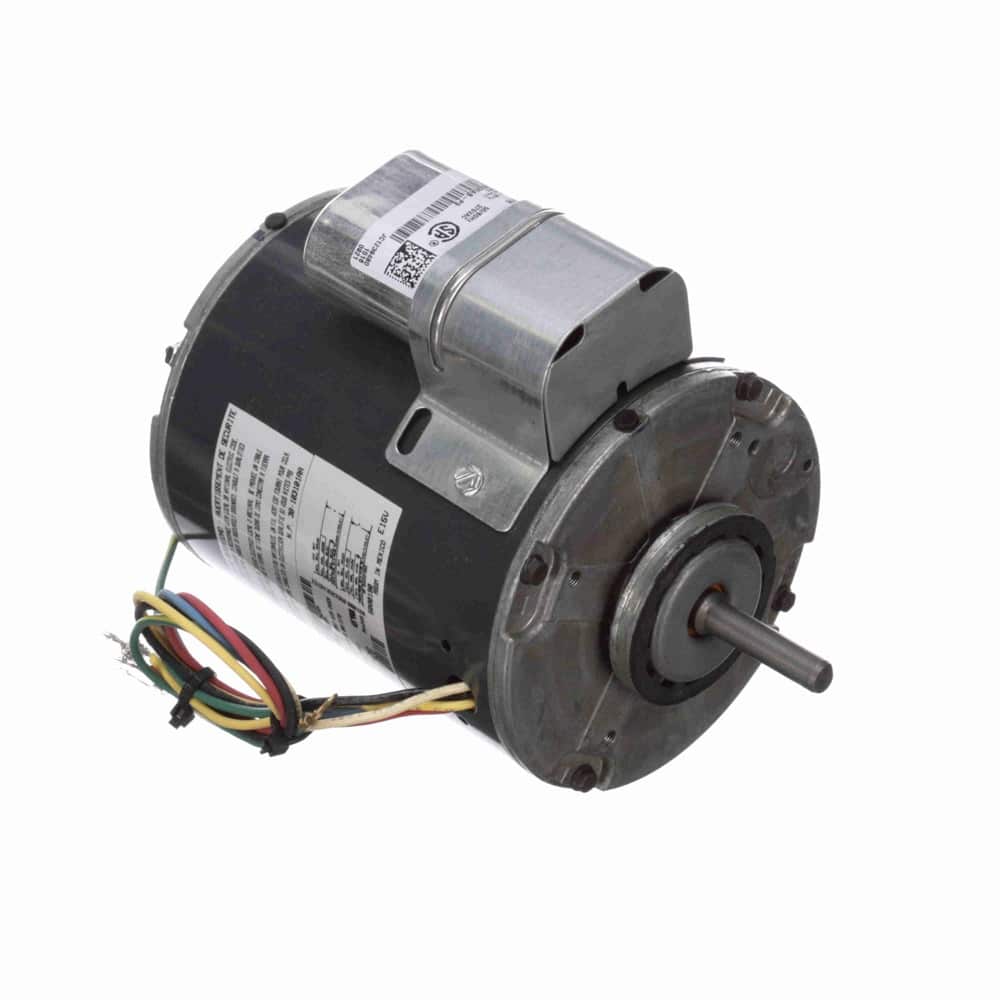

1/12HP PSC 5″ TE 1050 REV 115V 5uF-inc CF
Mfr # 2928 | Wright’s # GEN 2928
1/12HP Condenser Fan Motor, 1 Phase, 5″ Frame, 1050 RPM, 1 Speed, Permanent Split Capacitor, 115V, TE Enclosure
$123.96
Product Information
Brand
Genteq
Mfr #
2928
Wright's #
GEN 2928
Country of Origin
MEX
Specifications
C Dim
7.95"
Electrical Type
Permanent Split Capacitor
Enclosure
TEAO
Frame
5"
Frequency
60 Hz
HP
0.08 HP
HP2
1/12 HP
Insulation Class
B
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
6
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
1.85
Rated Voltage
115
Rotation
Reversible
RPM
1050
Service Factor
1
Shaft Diameter
0.37"
Speed
1050
Description
Commercial Condensing Unit – Space Heater – Unit Heaters and Cooler Motor
5″ Diameter – 42 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Supplied with Motor)
Thermally Protected
Totally Enclosed Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
3/8″ Diameter Shaft with Flatϴ” Leads
Exended Clampbolts Opposite Shaft End, Resilient Ring
120V
