Fasco

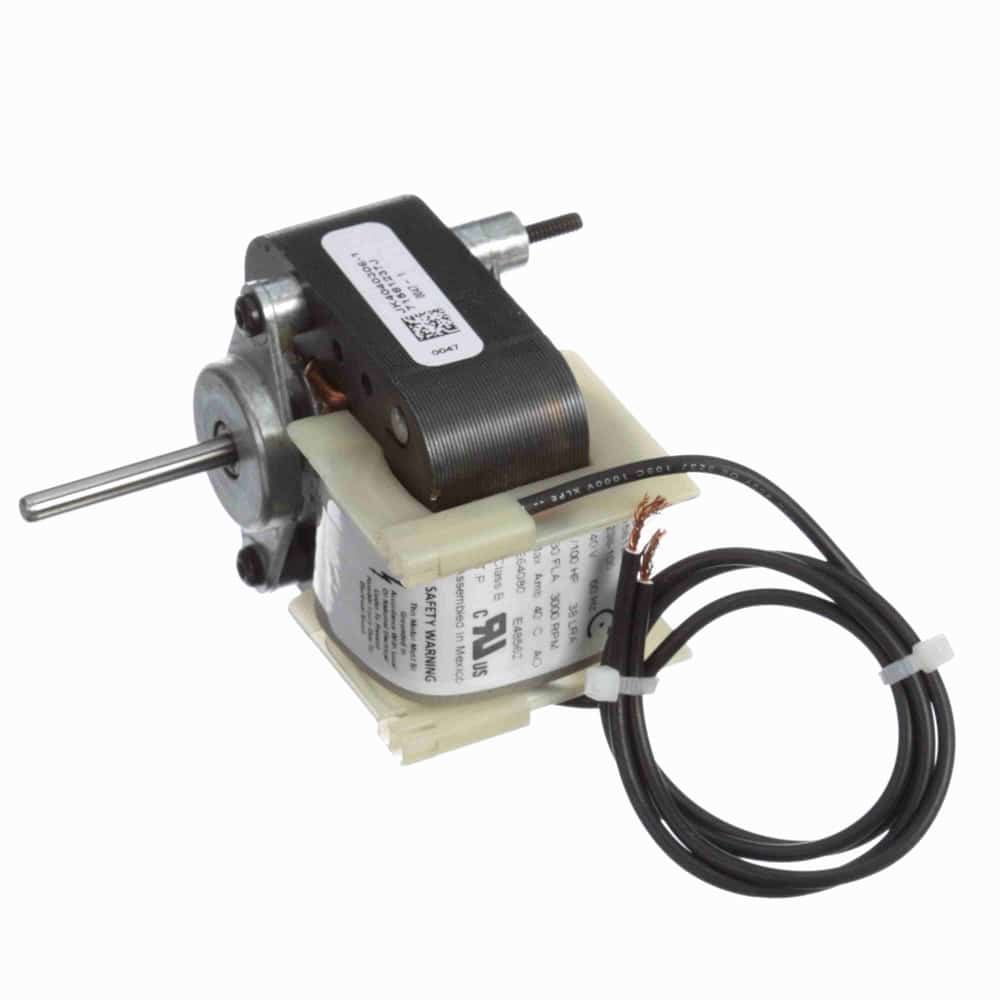

1/100HP ShP 3000 240V C-Frame
Mfr # K683 | Wright’s # FAS K683
1/100HP C-Frame / Skeleton Motor, 1 Phase, 3000 RPM, 1 Speed, Shaded Pole, 240V, Open Enclosed Enclosure
$56.23
Product Information
Brand
Fasco
Mfr #
K683
Wright's #
FAS K683
Country of Origin
MEX
Specifications
C Dim
3.78"
Electrical Type
Shaded Pole
Enclosure
Open Enclosed
Frame
C-FRAME
Frequency
60 Hz
HP
0.01 HP
HP2
1/100 HP
Insulation Class
B
kW
0.01kW
Max Ambient
40°C
Number of Poles
2
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
.30
Rated Voltage
240
Rotation
Clockwise
RPM
3000
Service Factor
1
Shaft Diameter
0.188"
Starting Method
Description
Heating – Refrigeration – Ventilating Motor
C-Frame
Shaded Pole
Thermally Protected, One-Shot Fuse
Open Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
.1875″ Diameter Shaftϵ.25″/12.25″ Leads with .38″ Strip
Extended Studs Opposite Shaft end
230V
