Fasco

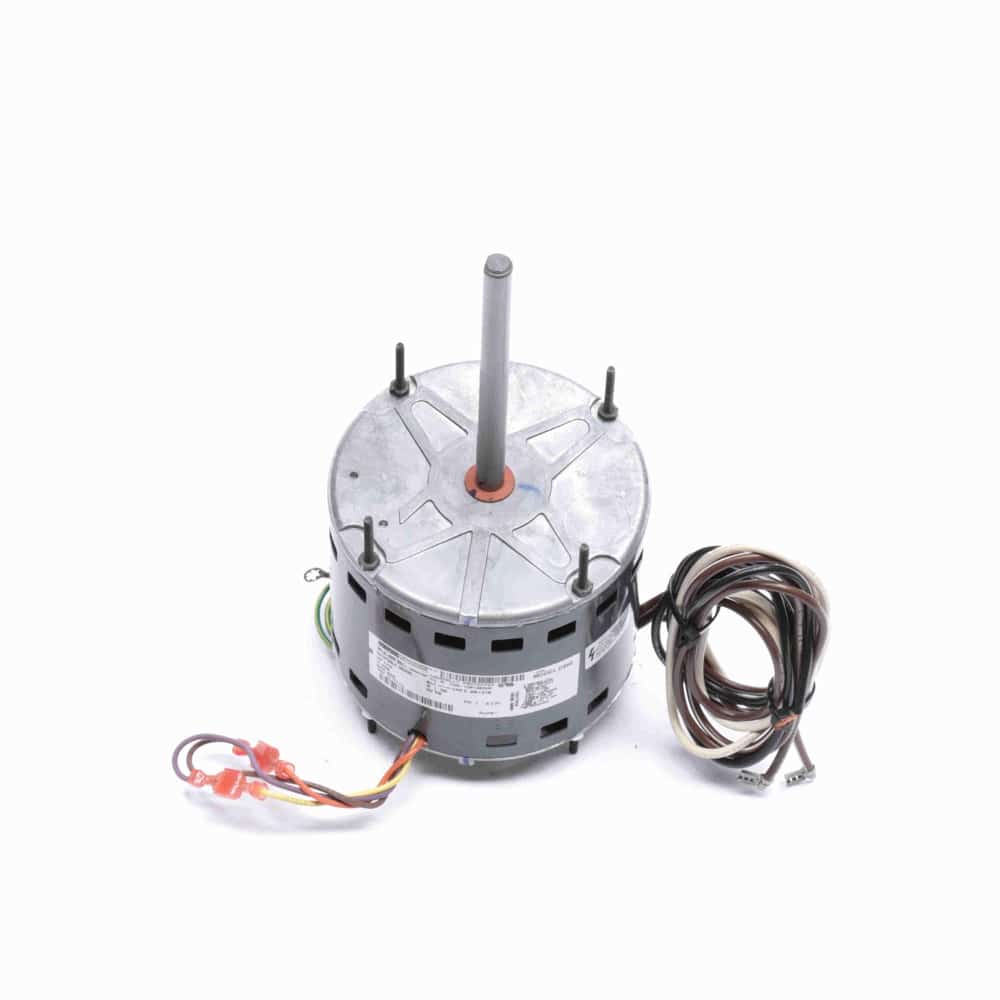

1/3HP PSC 5.6″ 825 REV 460V 5uF CF
Mfr # D960 | Wright’s # FAS D960
1/3HP Condenser Fan Motor, 1 Phase, 5.6″ Frame, 825 RPM, 1 Speed, Permanent Split Capacitor, 460V, OAO Enclosure
Contact Us For Pricing
Product Information
Brand
Fasco
Mfr #
D960
Wright's #
FAS D960
Specifications
C Dim
11.06"
Electrical Type
Permanent Split Capacitor
Enclosure
OAO
Frame
5.6"
Frequency
60 Hz
HP
0.33 HP
HP2
1/3 HP
Insulation Class
B
kW
0.25kW
Material
Rolled Steel
Max Ambient
60°C
Number of Poles
8
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
1.30
Rated Voltage
460
Rotation
Reversible
RPM
825
Service Factor
1
Shaft Diameter
0.5"
Description
Condenser Fan motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Lead End End-Frame and Shell, Enclosed Shaft End End-Frame, Air Over
Class B Insulation, 60°C Ambient
Ball Bearing
1/2″ Diameter Shaft with Double FlatЍ” Leads
Extended Studs Shaft End and Lead End, Belly Band Mount (Belly Band Not Included)
