Fasco

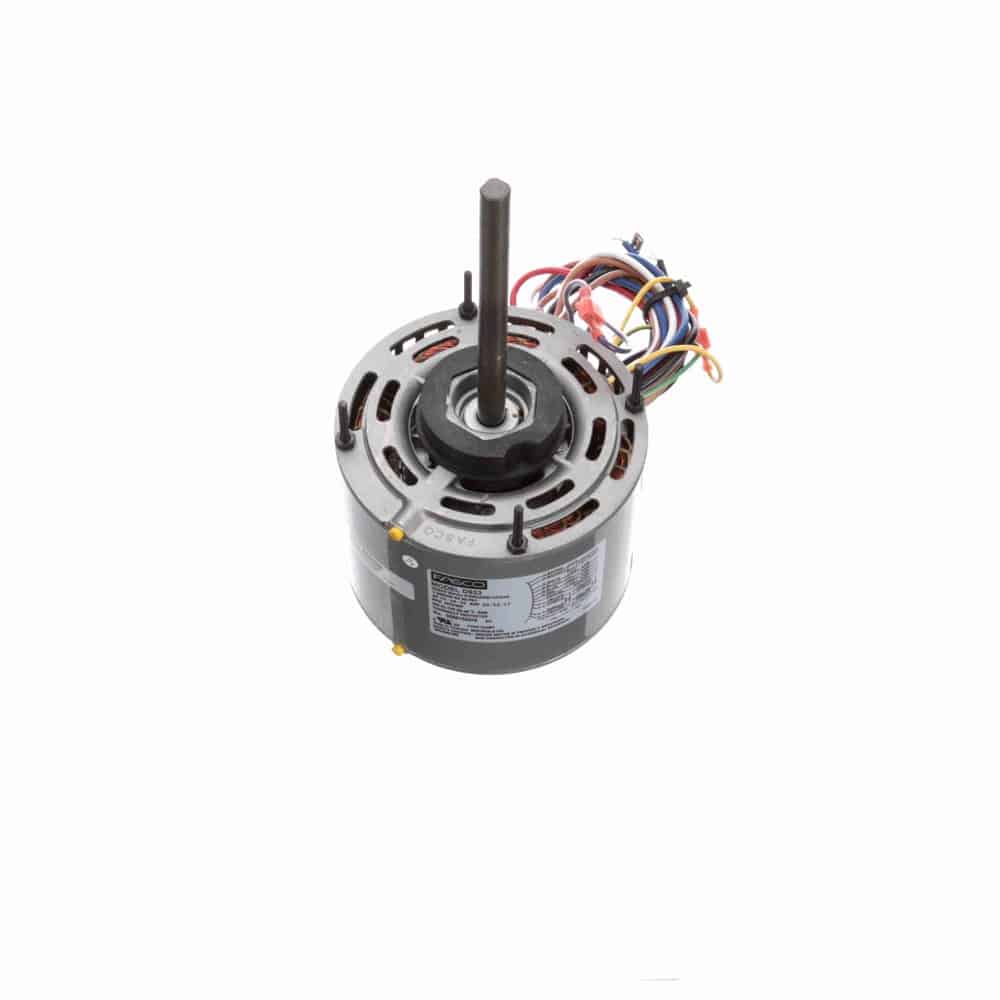

1/3HP PSC 5.6″ 3spd 1075 REV 208-230V 5uF BM
Mfr # D923 | Wright’s # FAS D923
1/3-1/4-1/5HP Fan & Blower Motor, 1 Phase, 5.6″ Frame, 1075 RPM, 3 Speed, Permanent Split Capacitor, 208-230V, ODP Enclosure
Contact Us For Pricing
Product Information
Brand
Fasco
Mfr #
D923
Wright's #
FAS D923
Country of Origin
THA
Specifications
Electrical Type
Permanent Split Capacitor
Enclosure
ODP
Frame
5.6"
Frequency
60 Hz
HP
0.33 HP
HP2
1/3-1/4-1/5 HP
Insulation Class
B
kW
0.25kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
6
Number of Speeds
3
Overload Protection
Automatic
Phase
1
Rated Current
2.9-2.2-1.7
Rated Voltage
208-230
Rotation
Reversible
RPM
1075
Service Factor
1
Shaft Diameter
0.5"
Starting Method
Description
Direct Drive Fan and Blower Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Shaft End and Lead End, Shell Half Vented, Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/2″ Diameter Shaft with Double FlatЂ” Leads
Extended Studs Shaft End, Resilient Ring Mounting, Belly Band Mounting (Belly Band Not Included)
