Fasco

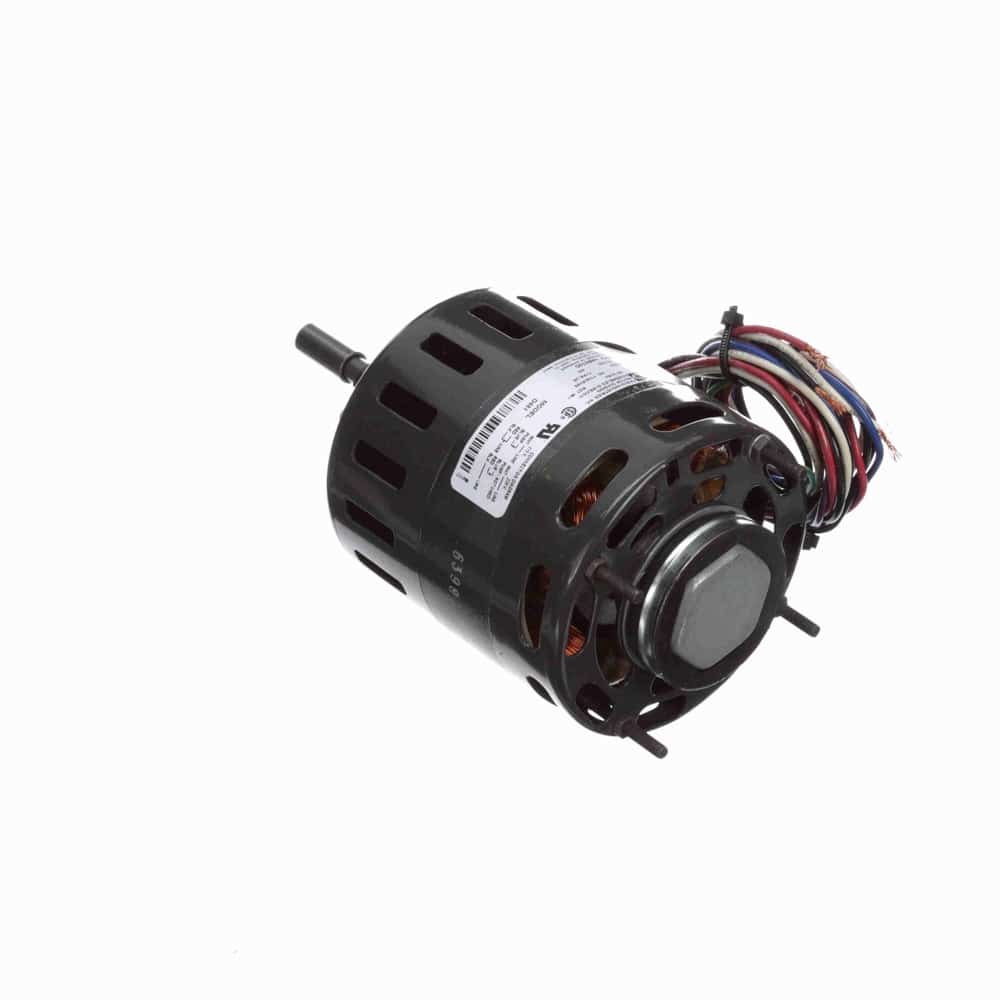

1/10HP ShP 4.4″ 1550 CCWSE 115/208-230V RF
Mfr # D481 | Wright’s # FAS D481
1/10HP Refrigeration Motor, 1 Phase, 4.4″ Frame, 1550 RPM, 1 Speed, Shaded Pole, 115/208-230V, OAO Enclosure
Contact Us For Pricing
Product Information
Brand Fasco
Mfr # D481
Wright's # FAS D481
Country of Origin MEX
Specifications
C Dim 8.5"
Electrical Type Shaded Pole
Enclosure OAO
Frame 4.4"
Frequency 60/50 Hz
HP 0.1 HP
HP2 1/10 HP
Insulation Class A
kW 0.07kW
Max Ambient 40°C
Number of Poles 4
Number of Speeds 1
Overload Protection Thermally Protected
Phase 1
Rated Current 4.5/2.2
Rated Voltage 115/208-230
Rotation Counterclockwise Shaft End
RPM 1550
Service Factor 1
Shaft Diameter 0.375"
Starting Method
Description
Refrigeration Fan Motor
4.4″ Diameter
Shaded Pole
Thermally Protected
Enclosed Shaft End End-Frame, Open Opposite Shaft End End-Frame and Shell, Air over
Class B Insulation, 40°C Ambient
Sleeve Bearing
3/8″ Diameter Shaft with FlatЇ” Leads
Extended Studs Opposite Shaft End, Resilient Mounting Rings
