Fasco

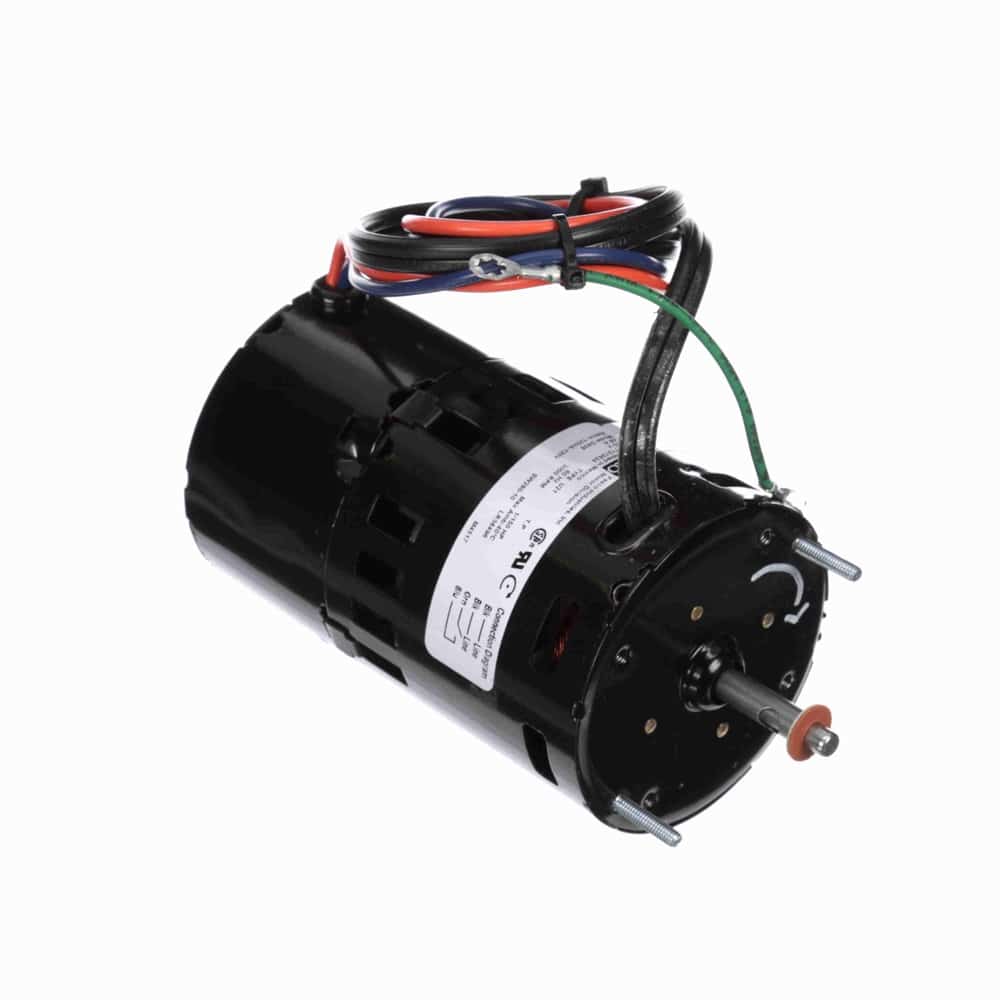

1/150HP ShP 3.3″ 3000 CWSE 115V
Mfr # D408 | Wright’s # FAS D408
1/150HP OEM Replacement Motor, 1 Phase, 3.3″ Frame, 3000 RPM, 1 Speed, Shaded Pole, 115V, TE Enclosure
$147.02
Product Information
Brand
Fasco
Mfr #
D408
Wright's #
FAS D408
Country of Origin
MEX
Specifications
C Dim
7.42"
Electrical Type
Shaded Pole
Enclosure
TE
Frame
3.3"
Frequency
60 Hz
HP
0.01 HP
HP2
1/150 HP
Insulation Class
B
kW
0.01kW
Material
Steel
Max Ambient
40°C
Number of Poles
2
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
0.48
Rated Voltage
115
Rotation
Clockwise Shaft End
RPM
3000
Shaft Diameter
0.25"
Starting Method
Description
OEM Direct Replacement Motor
3.3″ Diameter
Shaded Pole
Thermally Protected
Enclosed Shaft End End-Frame and Opposite Shaft End End-Frame, Open Shell, Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/4″ Diameter Shaft wth FlatϾ” Power Leads with AMP Terminal, 15″ Switch Leads
Extended Studs Shaft End
120V
