Fasco
1HP PSC 5.6″ 1125 208-230/460V 25uF
Mfr # D2850 | Wright’s # FAS D2850

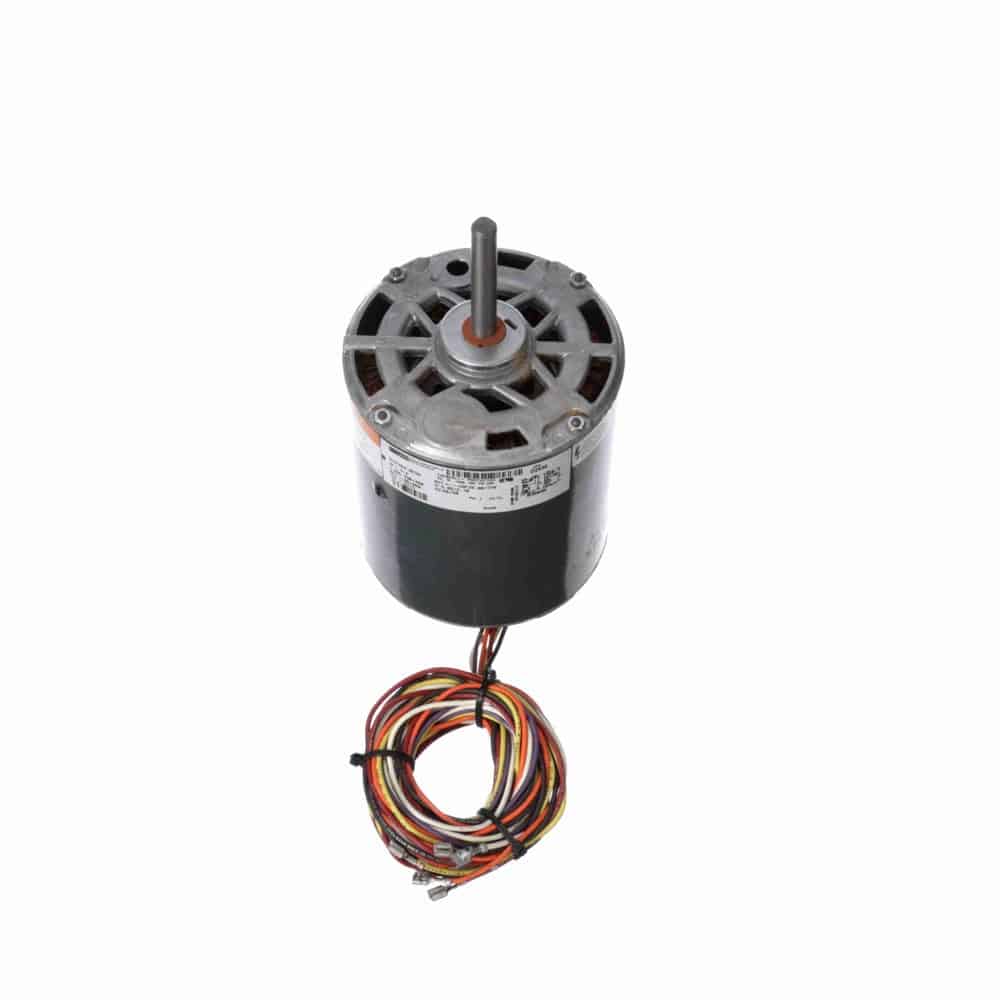

1-3/4HP OEM Replacement Motor, 1 Phase, 5.6″ Frame, 1125 RPM, 1 Speed, Permanent Split Capacitor, 208-230/460V, OAO Enclosure
Contact Us For Pricing
Product Information
Brand
Fasco
Mfr #
D2850
Wright's #
FAS D2850
Country of Origin
IND
Specifications
C Dim
9.88"
Electrical Type
Permanent Split Capacitor
Enclosure
OAO
Frame
5.6"
Frequency
60 Hz
HP
1 HP
HP2
1-3/4 HP
Insulation Class
B
kW
0.75kW
Material
Rolled Steel
Max Ambient
65°C
Number of Poles
6
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
3.95/2.10
Rated Voltage
208-230/460
Rotation
Counterclockwise
RPM
1125
Service Factor
1
Shaft Diameter
0.5"
Description
OEM Direct Replacement Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 25 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Shaft End and Lead End End-Frame, Semi-Enclosed Shell, Air Over
Class B Insulation, 40°C Ambient
Ball Bearing
1/2″ Diameter Shaft with Double Flatщ” Leads
Belly Band Mount (Belly Band Not Included)
