Fasco
1/8HP PSC 3.3″ 3000 REV 115V 4uF-inc BM
Mfr # D219 | Wright’s # FAS D219

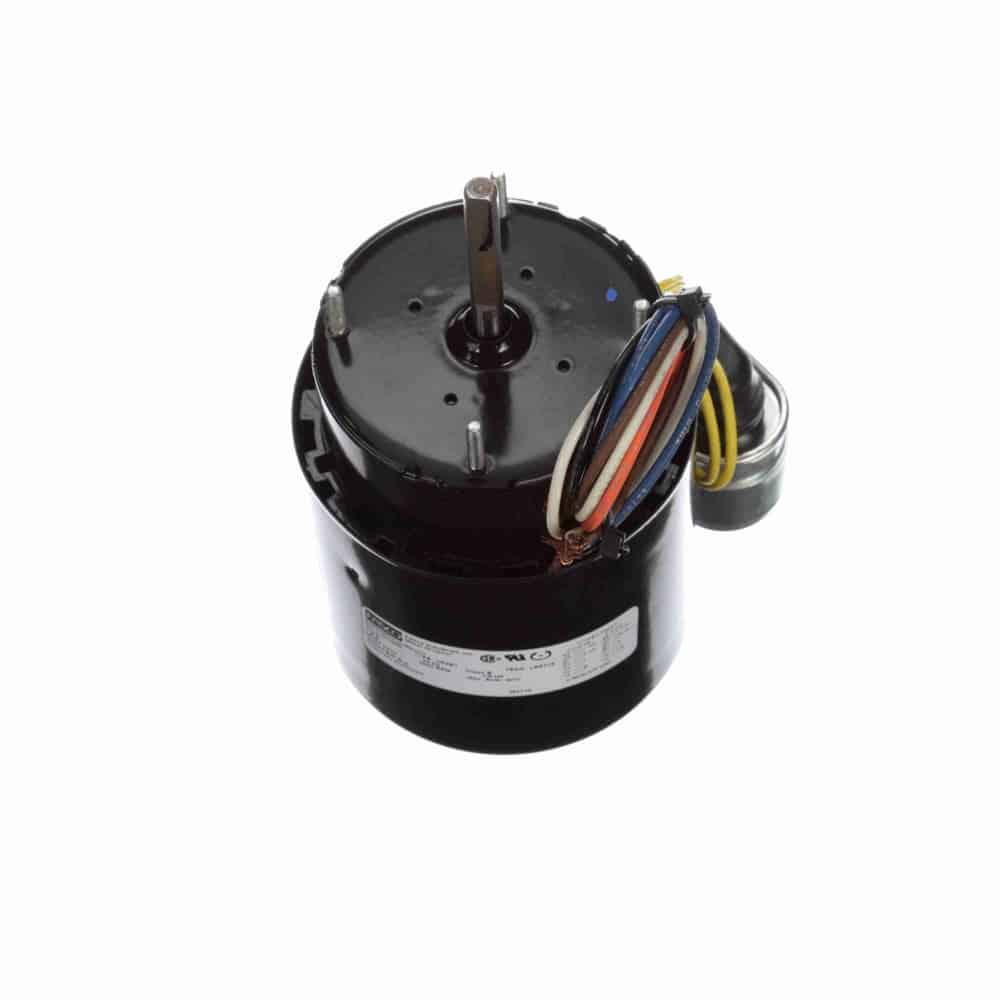

1/8HP Fan & Blower Motor, 1 Phase, 3.3″ Frame, 3000 RPM, 1 Speed, Permanent Split Capacitor, 115V, TE Enclosure
Contact Us For Pricing
Product Information
Brand
Fasco
Mfr #
D219
Wright's #
FAS D219
Country of Origin
MEX
Specifications
C Dim
7.24"
Electrical Type
Permanent Split Capacitor
Enclosure
TE
Frame
3.3"
Frequency
60 Hz
HP
0.13 HP
HP2
1/8 HP
Insulation Class
B
kW
0.1kW
Material
Steel
Max Ambient
40°C
Number of Poles
2
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
1.8
Rated Voltage
115
Rotation
Reversible
RPM
3000
Service Factor
1
Shaft Diameter
0.312"
Starting Method
Description
General Purpose Motor
3.3″ Diameter
Permanent Split Capacitor (PSC); Capacitor Required: 4 Mfd-370 Volts (Supplied with Motor)
Thermally Protected
Totally Enclosed Fan Cooled
Class B Insulation, 40°C Ambient
Ball Bearing
5/16″ Diameter Shaft with Flatϴ” Leads
Extended Studs Shaft End
120V
