Fasco

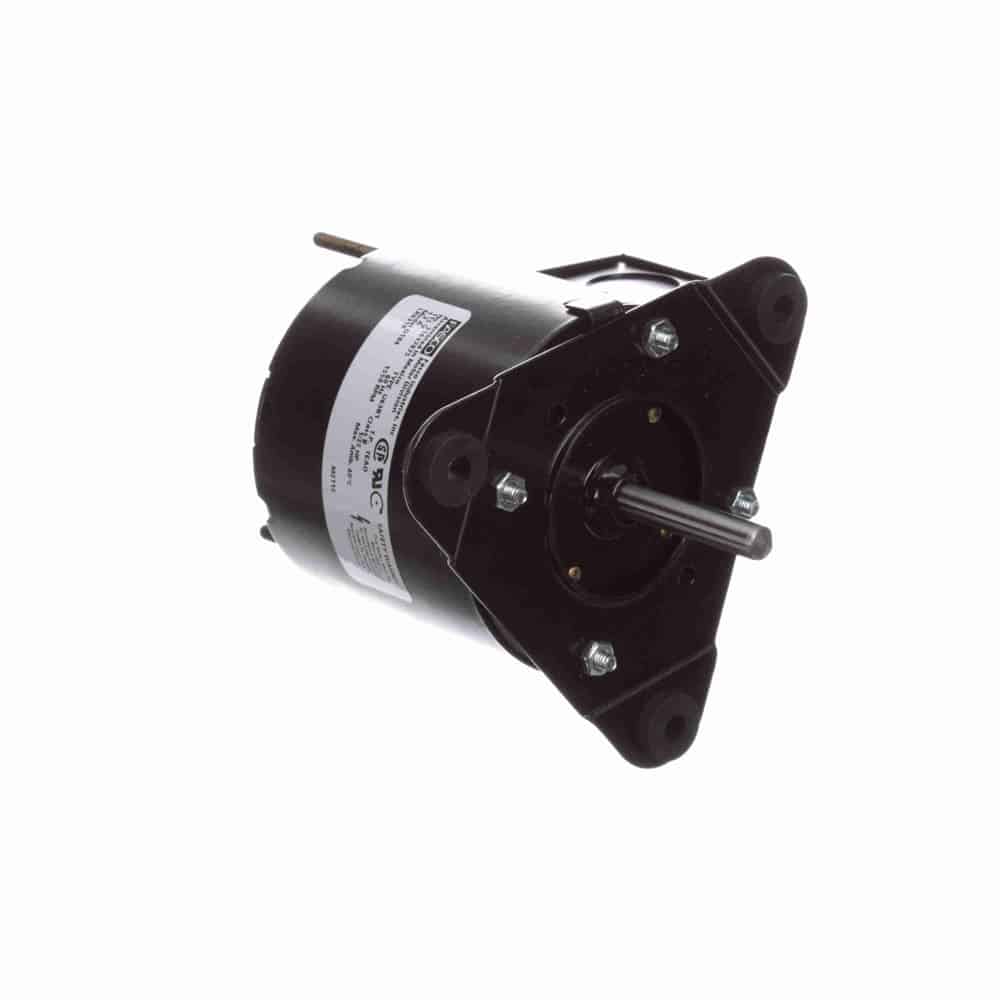

1/25HP ShP 3.3″ 1550 CWSE 115V BM
Mfr # D184 | Wright’s # FAS D184
1/25HP Fan & Blower Motor, 1 Phase, 3.3″ Frame, 1550 RPM, 1 Speed, Shaded Pole, 115V, TE Enclosure
$129.08
Product Information
Brand Fasco
Mfr # D184
Wright's # FAS D184
Country of Origin MEX
Specifications
C Dim 4.94"
Electrical Type Shaded Pole
Enclosure TE
Frame 3.3"
Frequency 60 Hz
HP 0.04 HP
HP2 1/25 HP
Insulation Class B
kW 0.03kW
Material Steel
Max Ambient 40°C
Number of Poles 4
Number of Speeds 1
Overload Protection Thermally Protected
Phase 1
Rated Current 1.20
Rated Voltage 115
Rotation Clockwise Shaft End
RPM 1550
Service Factor 1
Shaft Diameter 0.313"
Starting Method
Description
General Purpose Motor
3.3″ Diameter
Shaded Pole
Thermally Protected
Totally Enclosed Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
5/16″ Diameter Shaft with Flat
Conduit Box
Mounting Plate Shaft End, Extended Studs Opposite Shaft End
120V
