Fasco

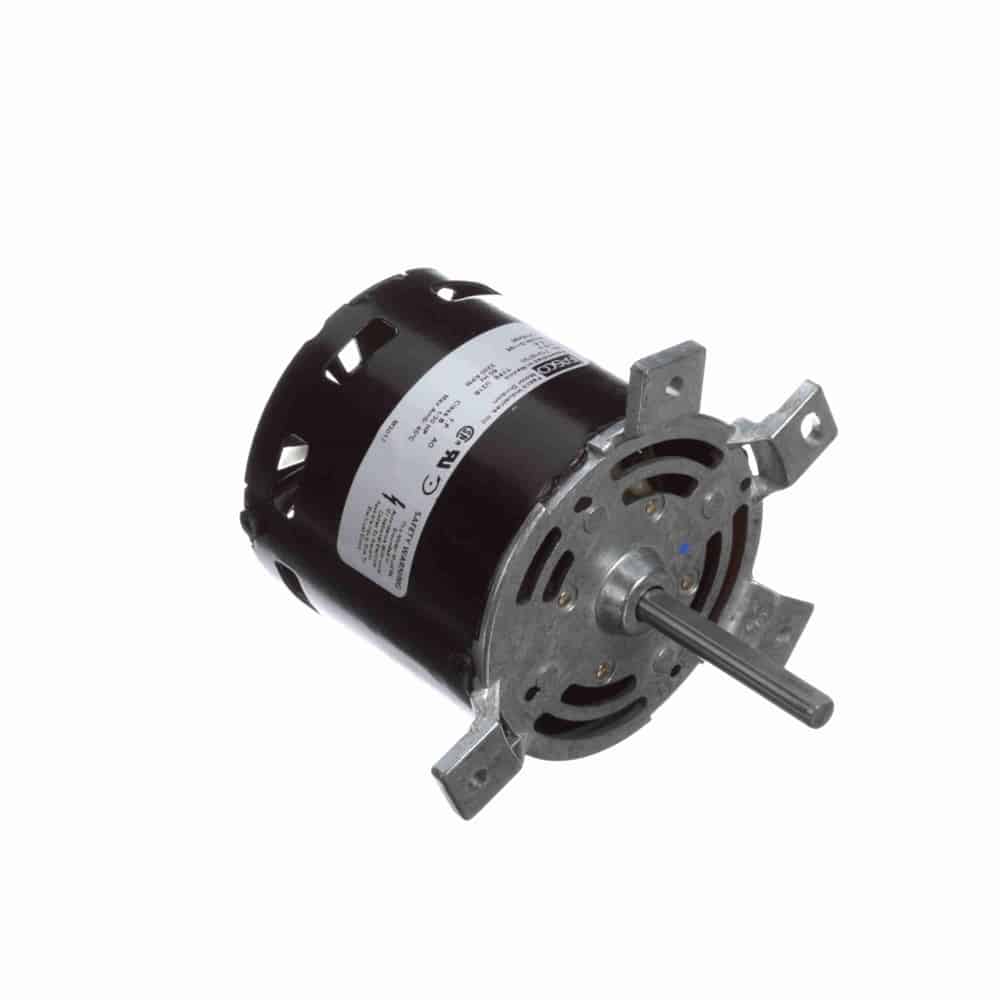

1/30HP ShP 3.3″ 3200 CCWSE 115V
Mfr # D1196 | Wright’s # FAS D1196
1/30HP Draft Inducer Motor, 1 Phase, 3.3″ Frame, 3200 RPM, 1 Speed, Shaded Pole, 115V, OAO Enclosure
Contact Us For Pricing
Product Information
Brand
Fasco
Mfr #
D1196
Wright's #
FAS D1196
Country of Origin
MEX
Specifications
C Dim
5.84"
Electrical Type
Shaded Pole
Enclosure
OAO
Frame
3.3"
Frequency
60 Hz
HP
0.03 HP
HP2
1/30 HP
Insulation Class
B
kW
0.02kW
Material
Steel
Max Ambient
40°C
Number of Poles
2
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
1.5
Rated Voltage
115
Rotation
Counterclockwise Shaft End
RPM
3200
Shaft Diameter
0.313"
Starting Method
Description
Draft Inducer Motor
3.3″ Diameter
Shaded Pole
Thermally Protected
Open Shaft End End-Frame and Lead End End-Frame, Shell Enclosed Shaft End and Open Lead End, Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
5/16″ Diameter Shaft with Flatl” Leads with Terminal Housing
Motor-Blower Bracket
120V
