Fasco

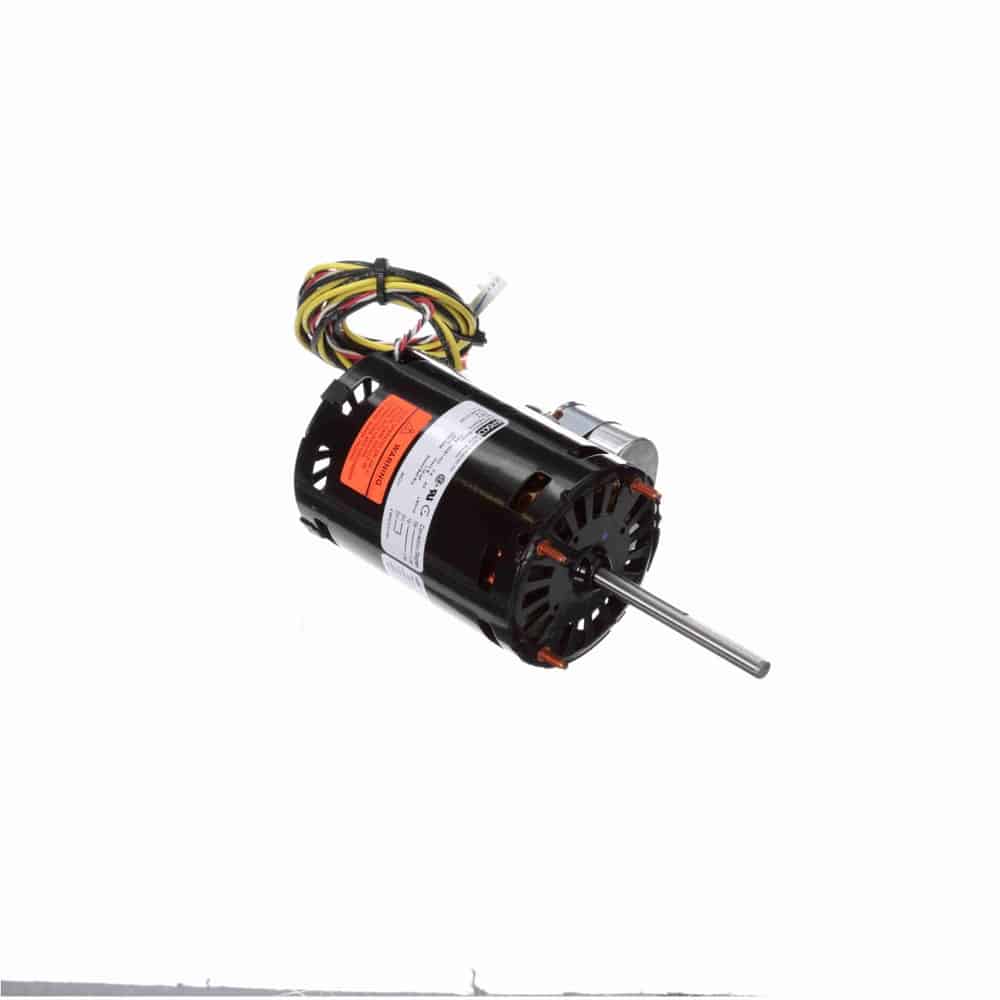

1/16HP PSC 3.3″ 3450 CCWSE 460V 4uF-inc
Mfr # D1184 | Wright’s # FAS D1184
1/16HP Draft Inducer Motor, 1 Phase, 3.3″ Frame, 3450 RPM, 1 Speed, Permanent Split Capacitor, 460V, OAO Enclosure
Contact Us For Pricing
Product Information
Brand
Fasco
Mfr #
D1184
Wright's #
FAS D1184
Country of Origin
MEX
Specifications
C Dim
8.1"
Electrical Type
Permanent Split Capacitor
Enclosure
OAO
Frame
3.3"
Frequency
60 Hz
HP
0.06 HP
HP2
1/16 HP
Insulation Class
B
kW
0.04kW
Material
Steel
Max Ambient
40°C
Number of Poles
2
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
0.3
Rated Voltage
460
Rotation
Counterclockwise Shaft End
RPM
3450
Service Factor
1
Shaft Diameter
0.312"
Starting Method
Description
Draft Inducer Motor
3.3″ Diameter
Permanent Split Capacitor (PSC); Capacitor Required: 4 Mfd-370 Volts (Supplied with Motor)
Thermally Protected
Open Shaft End End-Frame and Lead End End-Frame, Open Lead End Shell and Enclosed Shaft End Shell, Air Over
Class B Insulation, 40°C Ambient
Ball Bearing
5/16″ Diameter Shaft with Double FlatР” Leads with Spade Terminals
Extended Studs Shaft End
