Fasco

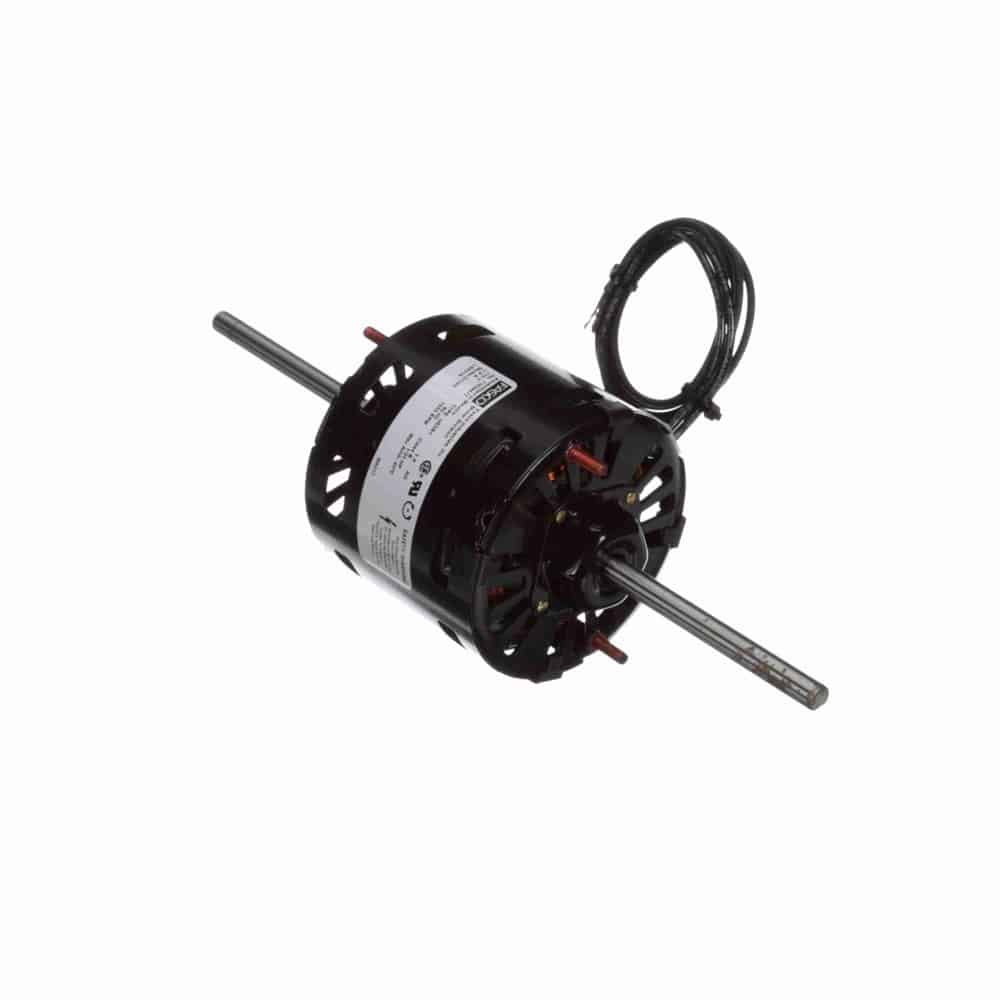

1/20HP ShP 3.3″ 1550 CCWSE 115V DS
Mfr # D1165 | Wright’s # FAS D1165
1/20HP OEM Replacement Motor, 1 Phase, 3.3″ Frame, 1550 RPM, 1 Speed, Shaded Pole, 115V, TE Enclosure
$139.45
Product Information
Brand
Fasco
Mfr #
D1165
Wright's #
FAS D1165
Country of Origin
MEX
Specifications
C Dim
10.22"
Electrical Type
Shaded Pole
Enclosure
TE
Frame
3.3"
Frequency
60 Hz
HP
0.05 HP
HP2
1/20 HP
Insulation Class
B
kW
0.04kW
Material
Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
1.9
Rated Voltage
115
Rotation
Clockwise Lead End
RPM
1550
Shaft Diameter
0.313"
Starting Method
Description
OEM Direct Replacement Motor
3.3″ Diameter
Shaded Pole
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
5/16″ Diameter Double Shaft with FlatϺ” Leads
Extended Studs Lead End and Opposite Lead End, Hex Mounting Hub Lead End and Opposite Lead End
120V
