Fasco

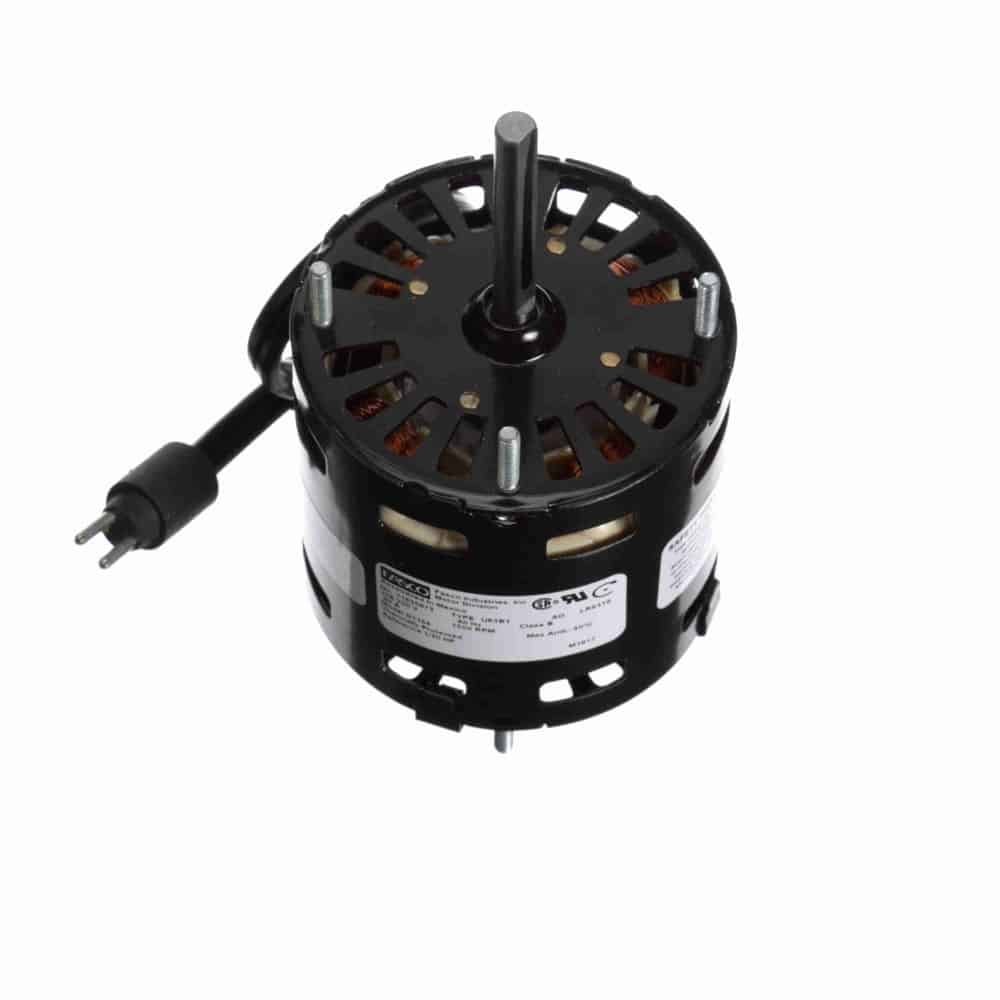

1/20HP ShP 3.3″ 1550 CWSE 208-230V
Mfr # D1154 | Wright’s # FAS D1154
1/20HP OEM Replacement Motor, 1 Phase, 3.3″ Frame, 1550 RPM, 1 Speed, Shaded Pole, 208-230V, OAO Enclosure
$115.52
Product Information
Brand
Fasco
Mfr #
D1154
Wright's #
FAS D1154
Country of Origin
MEX
Specifications
C Dim
5.77"
Electrical Type
Shaded Pole
Enclosure
OAO
Frame
3.3"
Frequency
60 Hz
HP
0.05 HP
HP2
1/20 HP
Insulation Class
B
kW
0.04kW
Material
Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
1.0
Rated Voltage
208-230
Rotation
Clockwise Shaft End
RPM
1550
Service Factor
1
Shaft Diameter
0.313"
Starting Method
Description
OEM Direct Replacement Motor
3.3″ Diameter
Shaded Pole
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
5/16″ Diameter Shaft with Flatl” Leads with Molded Plug
Extended Studs Shaft End and Lead End
