Fasco

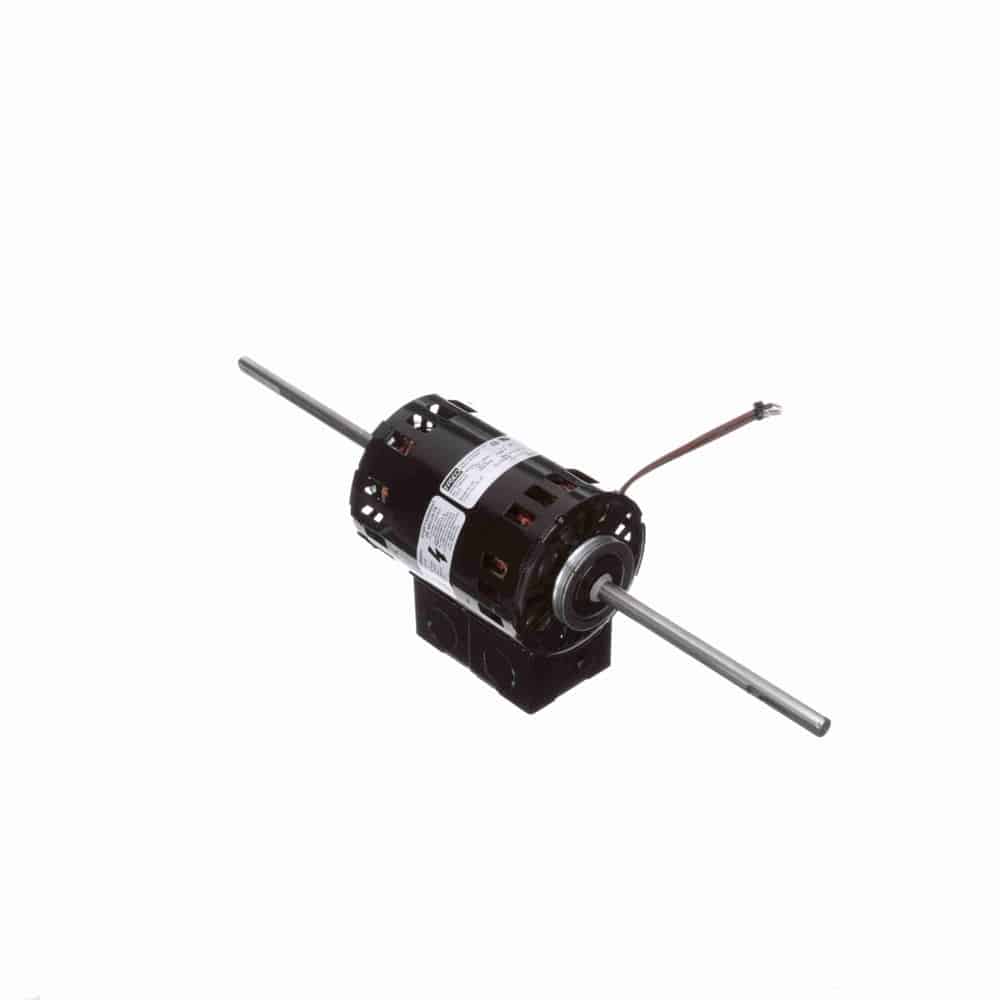

1/10HP PSC 3.3″ 3spd 1500 CWSE 115V 5uF DS
Mfr # D1140 | Wright’s # FAS D1140
1/10-1/12-1/15HP OEM Replacement Motor, 1 Phase, 3.3″ Frame, 1500 RPM, 3 Speed, Permanent Split Capacitor, 115V, OAO Enclosure
Contact Us For Pricing
Product Information
Brand
Fasco
Mfr #
D1140
Wright's #
FAS D1140
Country of Origin
MEX
Specifications
C Dim
16.05"
Electrical Type
Permanent Split Capacitor
Enclosure
OAO
Frame
3.3"
Frequency
60 Hz
HP
0.1 HP
HP2
1/10-1/12-1/15 HP
Insulation Class
B
kW
0.07kW
Material
Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
3
Overload Protection
Thermally Protected
Phase
1
Rated Current
2.2/2.1/1.7
Rated Voltage
115
Rotation
Counterclockwise Lead End
RPM
1500
Service Factor
1
Shaft Diameter
0.375"
Starting Method
Description
OEM Direct Replacement Motor
3.3″ Diameter
Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
3/8″ Double Shaft with Flatl” Leads
Resilient Ring Mounting
120V
