Fasco
1/20HP PSC 3.3″ 1550 CWSE 115/230V 4uF RF
Mfr # D1129 | Wright’s # FAS D1129

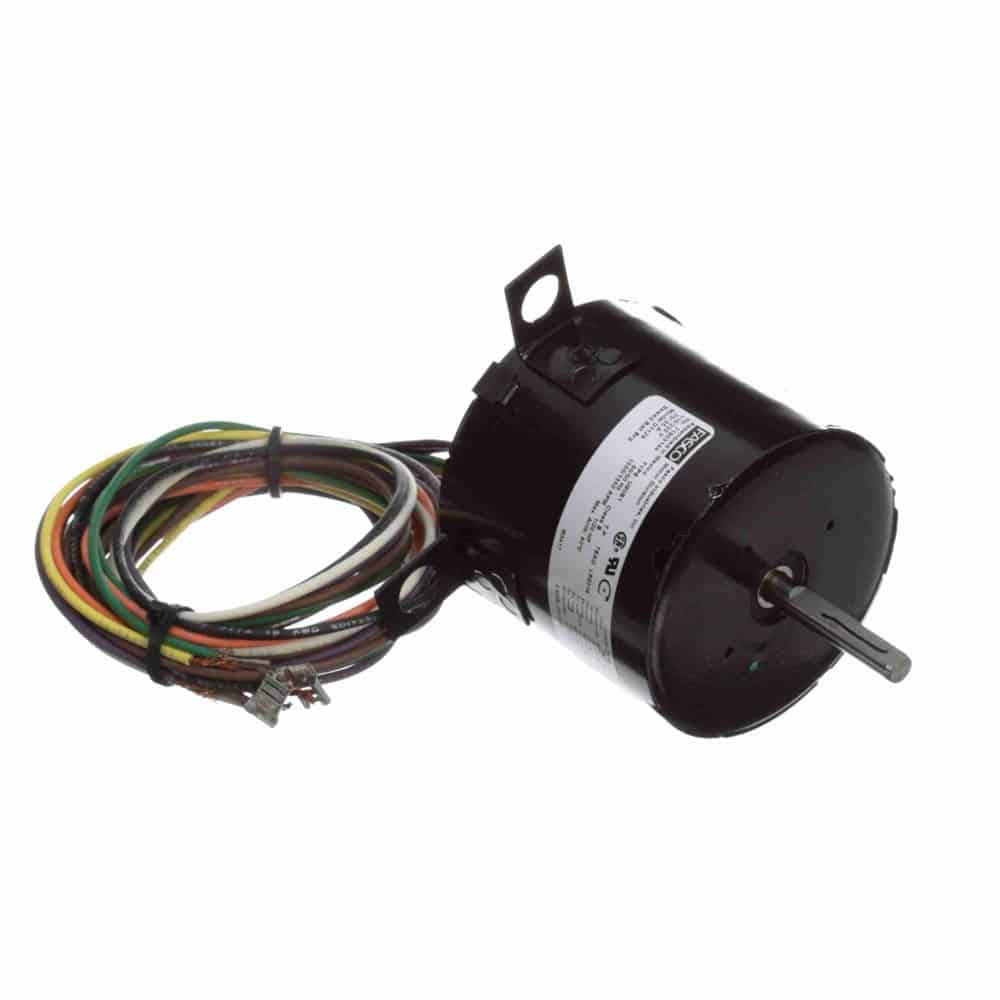

1/20HP Refrigeration Motor, 1 Phase, 3.3″ Frame, 1550 RPM, 1 Speed, Permanent Split Capacitor, 115/230V, TE Enclosure
$203.57
Product Information
Brand
Fasco
Mfr #
D1129
Wright's #
FAS D1129
Country of Origin
MEX
Specifications
C Dim
4.86"
Electrical Type
Permanent Split Capacitor
Enclosure
TE
Frame
3.3"
Frequency
50 Hz
HP
0.05 HP
HP2
1/20 HP
Insulation Class
B
kW
0.04kW
Material
Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
0.70/0.35
Rated Voltage
115/230
Rotation
Clockwise Shaft End
RPM
1550
Service Factor
1
Shaft Diameter
0.312"
Starting Method
Description
Refrigeration Fan Motor
3.3″ Diameter
Permanent Split Capacitor (PSC); Capacitor Required: 4 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Totally Enclosed Air Over
Class B Insulation, 40°C Ambient
Sealed Ball Bearing
.5/16″ Diameter Shaft with FlatВ” Leads
Lug Mounting
