Fasco

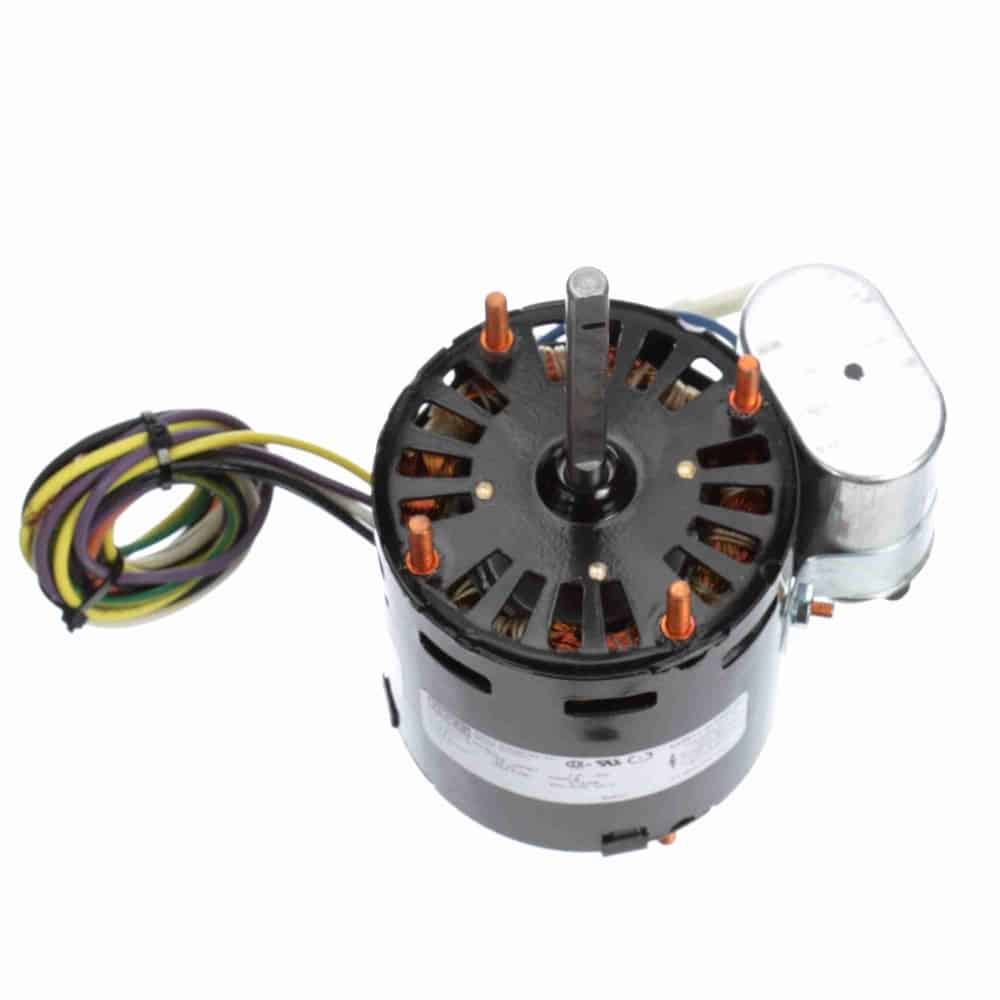

1/12HP PSC 3.3″ 1550 REV 115/230V 5uF-inc
Mfr # D1127 | Wright’s # FAS D1127
1/12HP OEM Replacement Motor, 1 Phase, 3.3″ Frame, 1550 RPM, 1 Speed, Permanent Split Capacitor, 115/230V, OAO Enclosure
$106.51
Product Information
Brand
Fasco
Mfr #
D1127
Wright's #
FAS D1127
Country of Origin
MEX
Specifications
C Dim
6.87"
Electrical Type
Permanent Split Capacitor
Enclosure
OAO
Frame
3.3"
Frequency
60 Hz
HP
0.08 HP
HP2
1/12 HP
Insulation Class
B
kW
0.06kW
Material
Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
1.1/0.6
Rated Voltage
115/230
Rotation
Reversible
RPM
1550
Service Factor
1
Shaft Diameter
0.313"
Starting Method
Description
OEM Direct Replacement Motor
3.3″ Diameter
Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Supplied with Motor)
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
5/16″ Diameter Shaft with Flatϼ” Leads
Extended Studs Shaft End
