Fasco

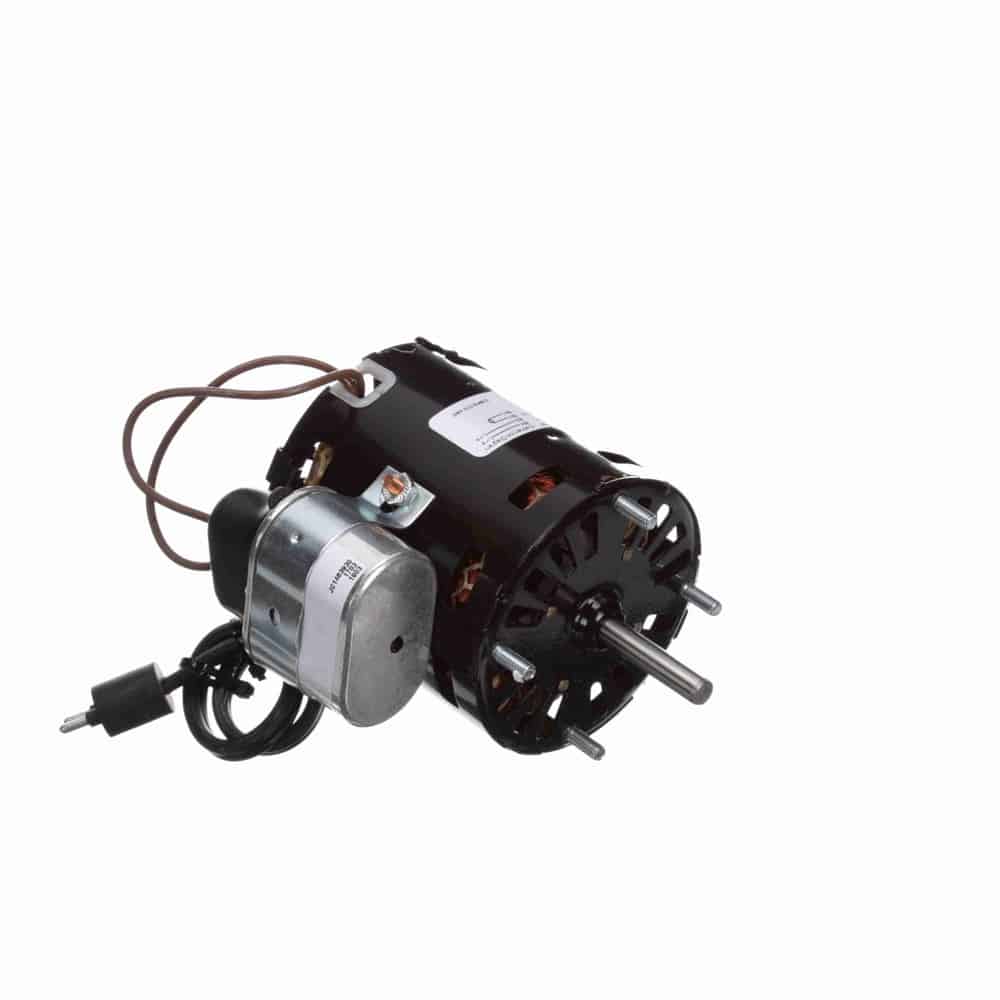

1/16HP PSC 3.3″ 1650 CWSE 208-230V 2uF-inc
Mfr # D1122 | Wright’s # FAS D1122
1/16HP OEM Replacement Motor, 1 Phase, 3.3″ Frame, 1650 RPM, 1 Speed, Permanent Split Capacitor, 208-230V, OAO Enclosure
$189.12
Product Information
Brand
Fasco
Mfr #
D1122
Wright's #
FAS D1122
Country of Origin
MEX
Specifications
C Dim
5.57"
Electrical Type
Permanent Split Capacitor
Enclosure
OAO
Frame
3.3"
Frequency
50 Hz
HP
0.06 HP
HP2
1/16 HP
Insulation Class
B
kW
0.04kW
Material
Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
0.4
Rated Voltage
208-230
Rotation
Clockwise Shaft End
RPM
1650
Service Factor
1
Shaft Diameter
0.313"
Starting Method
Description
OEM Direct Replacement Motor
3.3″ Diameter
Permanent Split Capacitor (PSC); Capacitor Required: 2 Mfd-370 Volts (Supplied with Motor)
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
5/16″ Diameter Shaft with Flatϲ” Leads with Molded Plug
Extended Studs Shaft End
