Fasco

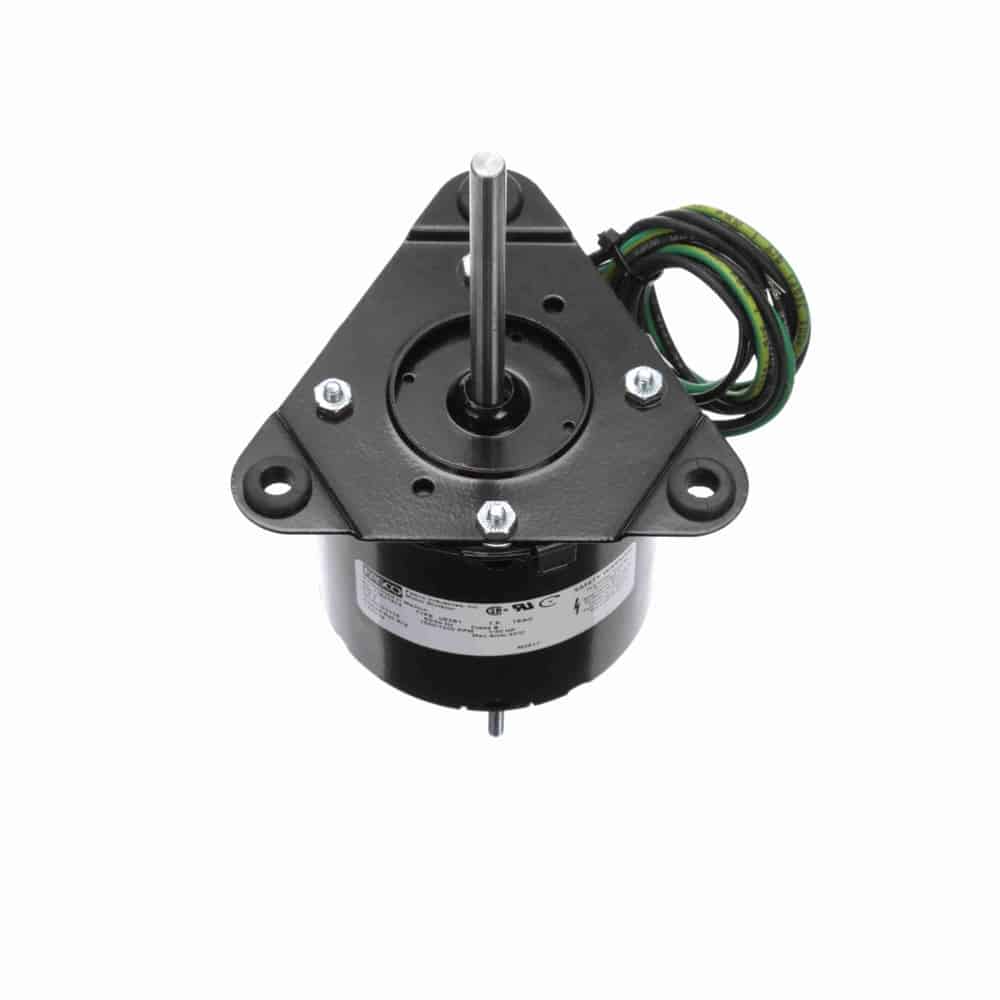

1/30HP ShP 3.3″ 1550 CWSE 240V
Mfr # D1118 | Wright’s # FAS D1118
1/30HP OEM Replacement Motor, 1 Phase, 3.3″ Frame, 1550 RPM, 1 Speed, Shaded Pole, 240V, TE Enclosure
Contact Us For Pricing
Product Information
Brand
Fasco
Mfr #
D1118
Wright's #
FAS D1118
Country of Origin
MEX
Specifications
C Dim
6.65"
Electrical Type
Shaded Pole
Enclosure
TE
Frame
3.3"
Frequency
60 Hz
HP
0.03 HP
HP2
1/30 HP
Insulation Class
B
kW
0.02kW
Material
Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
0.6
Rated Voltage
240
Rotation
Clockwise Shaft End
RPM
1550
Service Factor
1
Shaft Diameter
0.312"
Starting Method
Description
OEM Direct Replacement Motor
3.3″ Diameter
Shaded Pole
Thermally Protected
Totally Enclosed Air Over
Class B Insulation, 40°C Ambient
Ball Bearing
5/16″ Diameter Shaft with FlatϿ” Leads
Extended Studs Opposite Shaft End, Mounting Plate Shaft End
230V
