Fasco

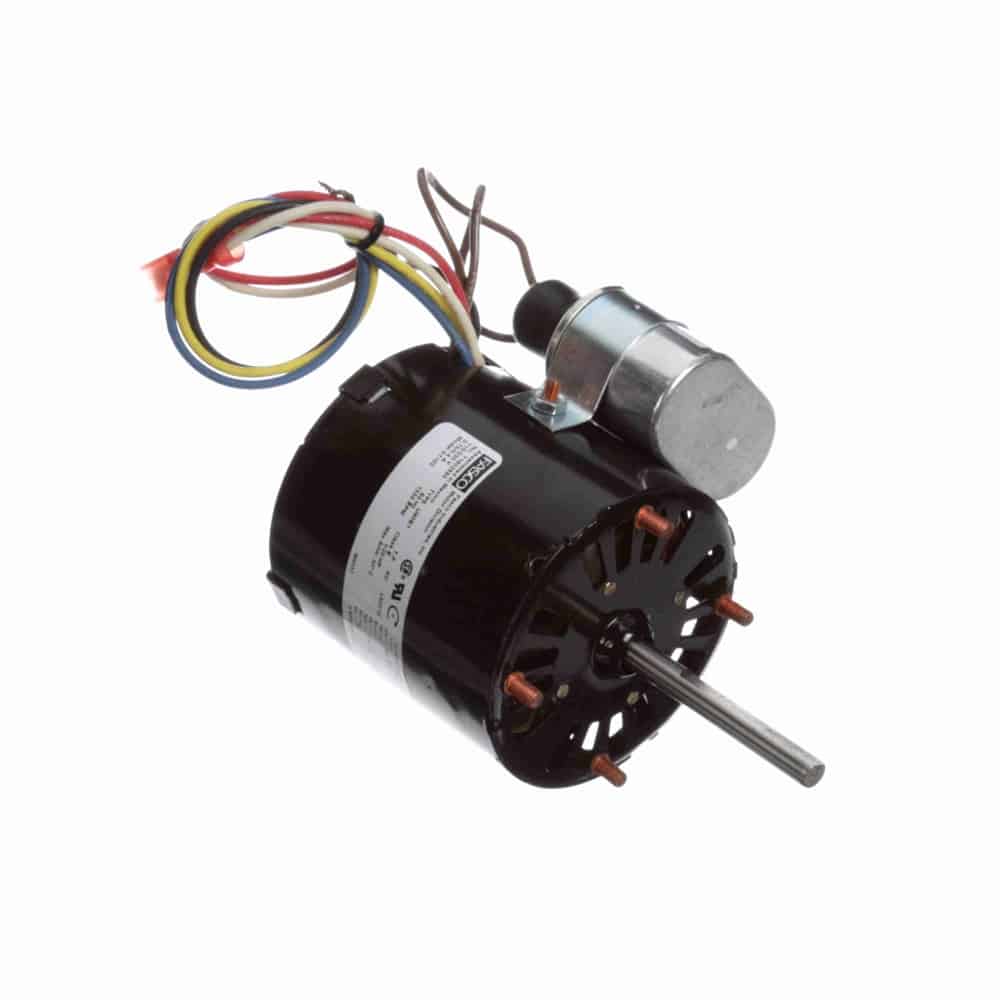

1/20HP PSC 3.3″ 1550 CWSE 115/230V 5uF-inc
Mfr # D1102 | Wright’s # FAS D1102
1/20HP OEM Replacement Motor, 1 Phase, 3.3″ Frame, 1550 RPM, 1 Speed, Permanent Split Capacitor, 115/230V, OAO Enclosure
$160.62
Product Information
Brand
Fasco
Mfr #
D1102
Wright's #
FAS D1102
Country of Origin
MEX
Specifications
C Dim
6.41"
Electrical Type
Permanent Split Capacitor
Enclosure
OAO
Frame
3.3"
Frequency
60 Hz
HP
0.05 HP
HP2
1/20 HP
Insulation Class
B
kW
0.04kW
Material
Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
0.75/0.40
Rated Voltage
115/230
Rotation
Clockwise Shaft End
RPM
1550
Service Factor
1
Shaft Diameter
0.313"
Starting Method
Description
OEM Direct Replacement Motor
3.3″ Diameter
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Supplied with Motor)
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
5/16″ Diameter Shaft with Flatϴ” Leads with Molded Plug
Extended Studs Shaft End, Belly Band Mount (Belly Band Not Included)
