Fasco
1/20HP ShP 3.3″ 1500 CCWSE 115V
Mfr # D1101 | Wright’s # FAS D1101

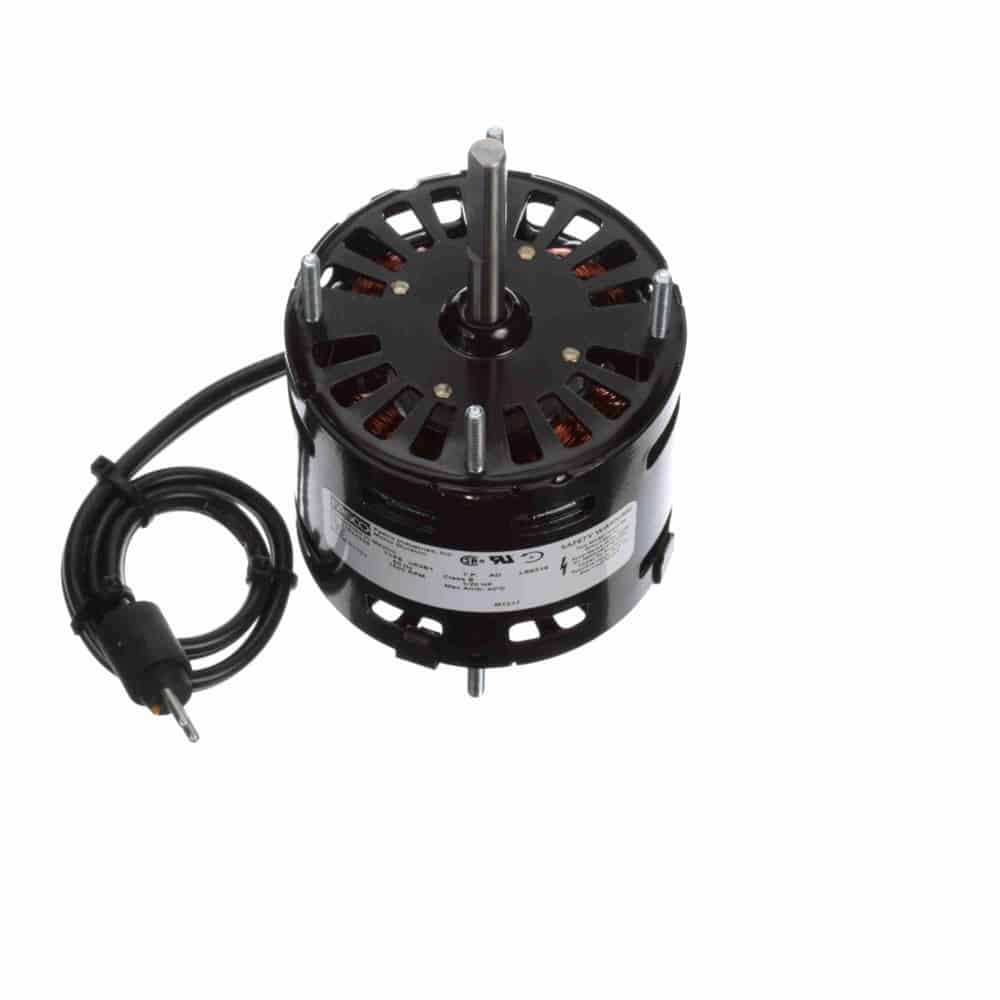

1/20HP OEM Replacement Motor, 1 Phase, 3.3″ Frame, 1500 RPM, 1 Speed, Shaded Pole, 115V, OAO Enclosure
$98.76
Product Information
Brand Fasco
Mfr # D1101
Wright's # FAS D1101
Country of Origin MEX
Specifications
C Dim 5.33"
Electrical Type Shaded Pole
Enclosure OAO
Frame 3.3"
Frequency 60 Hz
HP 0.05 HP
HP2 1/20 HP
Insulation Class B
kW 0.04kW
Material Steel
Max Ambient 40°C
Number of Poles 4
Number of Speeds 1
Overload Protection Thermally Protected
Phase 1
Rated Current 1.9
Rated Voltage 115
Rotation Counterclockwise Shaft End
RPM 1500
Service Factor 1
Shaft Diameter 0.313"
Starting Method
Description
OEM Direct Replacement Motor
3.3″ Diameter
Shaded Pole
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
5/16″ Diameter Shaft with Flat϶” Leads with Quick Connect Molded Plug
Extended Studs Shaft End and Opposite Shaft End
120V
