Fasco

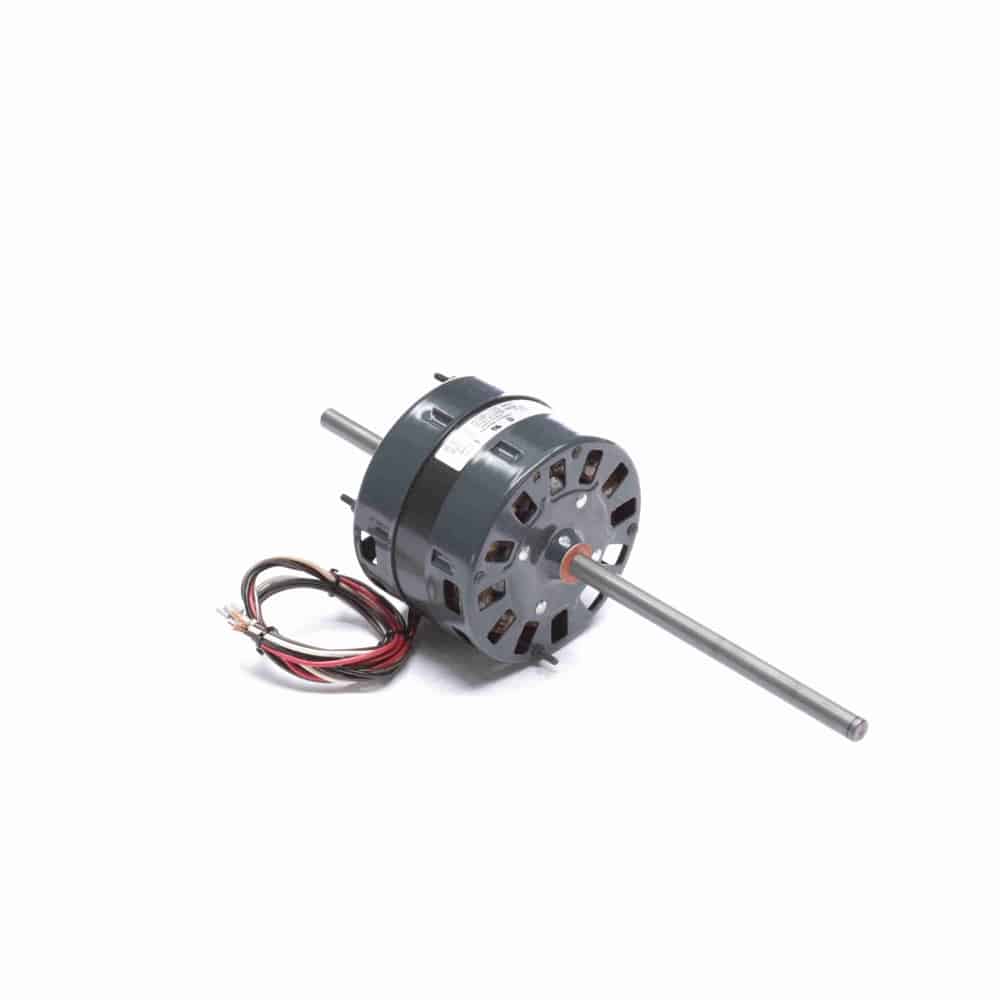

1/3HP PSC 5″ 2spd 1675 CCWSE 115V 5uF DS
Mfr # D1092 | Wright’s # FAS D1092
1/3HP OEM Replacement Motor, 1 Phase, 5″ Frame, 1675 RPM, 2 Speed, Permanent Split Capacitor, 115V, OAO Enclosure
Contact Us For Pricing
Product Information
Brand
Fasco
Mfr #
D1092
Wright's #
FAS D1092
Country of Origin
MEX
Specifications
C Dim
15.02"
Electrical Type
Permanent Split Capacitor
Enclosure
OAO
Frame
5"
Frequency
60 Hz
HP
0.33 HP
HP2
1/3 HP
Insulation Class
B
kW
0.25kW
Max Ambient
40°C
Number of Poles
4
Number of Speeds
2
Overload Protection
Automatic
Phase
1
Rated Current
3.4
Rated Voltage
115
Rotation
Counterclockwise Shaft End
RPM
1675
Service Factor
1
Shaft Diameter
0.5"
Starting Method
Description
OEM Direct Replacement Motor
5″ Diameter – 42 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/2″ Diameter Double Shaft with FlatϿ” Leads
(4) Extended Studs Lead End, (1) Extended Stud Opposite Lead End
120V
