Fasco

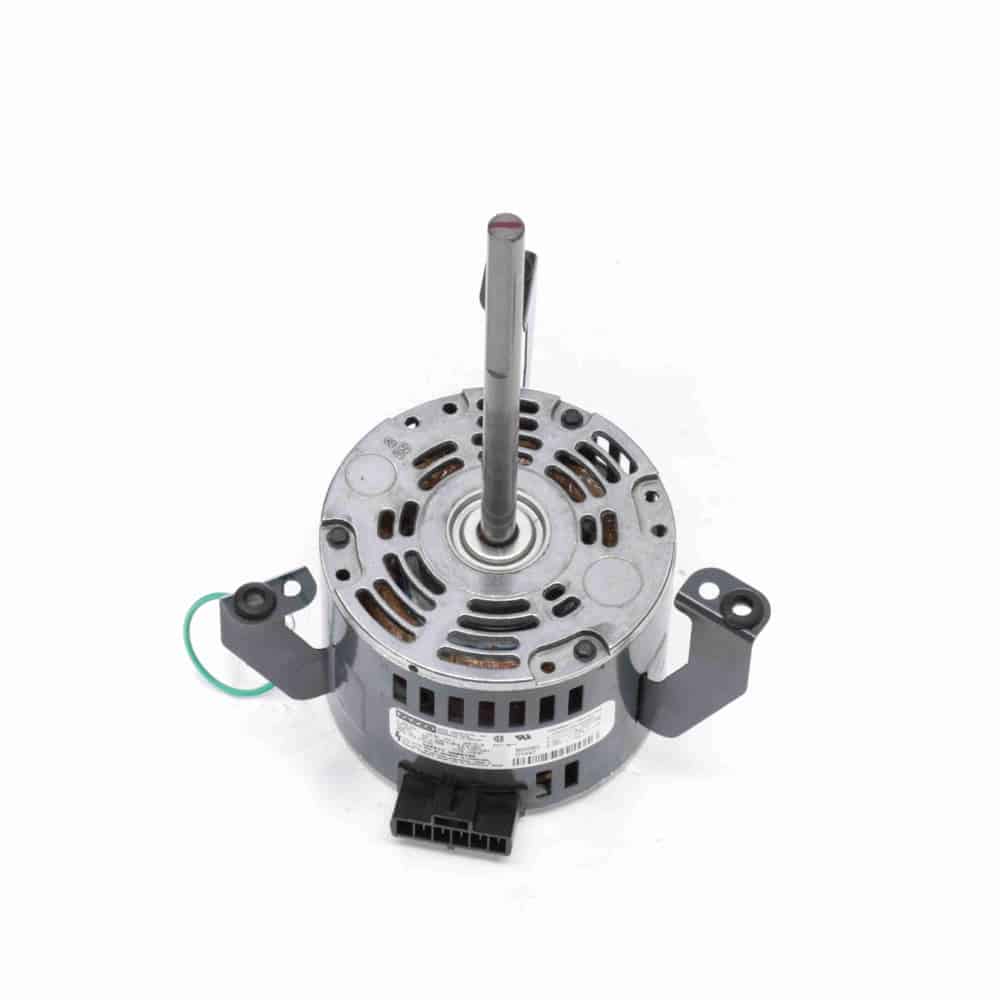

1/20HP PSC 5″ 3spd 1075 CWSE 208-230V 5uF
Mfr # D1047 | Wright’s # FAS D1047
1/20HP OEM Replacement Motor, 1 Phase, 5″ Frame, 1075 RPM, 3 Speed, Permanent Split Capacitor, 208-230V, OAO Enclosure
Contact Us For Pricing
Product Information
Brand Fasco
Mfr # D1047
Wright's # FAS D1047
Country of Origin MEX
Specifications
C Dim 11.02"
Electrical Type Permanent Split Capacitor
Enclosure OAO
Frame 5"
Frequency 60 Hz
HP 0.05 HP
HP2 1/20 HP
Insulation Class B
kW 0.04kW
Material Rolled Steel
Max Ambient 40°C
Number of Poles 6
Number of Speeds 3
Overload Protection Automatic
Phase 1
Rated Current 1.6
Rated Voltage 208-230
Rotation Clockwise Shaft End
RPM 1075
Service Factor 1
Shaft Diameter 0.5"
Starting Method
Description
OEM Direct Replacement Motor
5″ Diameter – 42 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/2″ Diameter Shaft with Flat
Terminal Block
Flex Mount
