Fasco

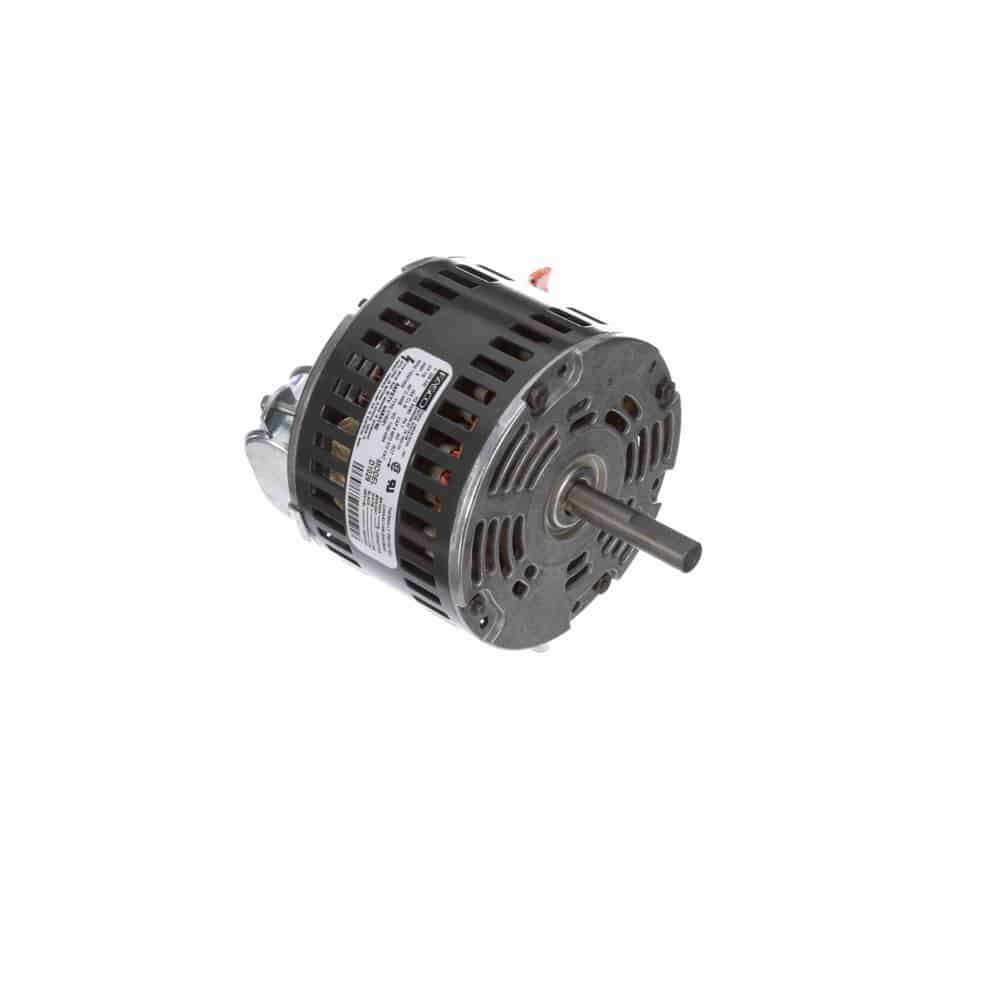

1/8HP PSC 5″ 1620 CCWSE 208-230V 5uF-inc
Mfr # D1029 | Wright’s # FAS D1029
1/8HP OEM Replacement Motor, 1 Phase, 5″ Frame, 1620 RPM, 1 Speed, Permanent Split Capacitor, 208-230V, OAO Enclosure
Contact Us For Pricing
Product Information
Brand
Fasco
Mfr #
D1029
Wright's #
FAS D1029
Country of Origin
MEX
Specifications
C Dim
5.83"
Electrical Type
Permanent Split Capacitor
Enclosure
OAO
Frame
5"
Frequency
50 Hz
HP
0.13 HP
HP2
1/8 HP
Insulation Class
B
kW
0.1kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
0.8
Rated Voltage
208-230
Rotation
Counterclockwise Shaft End
RPM
1620
Service Factor
1
Shaft Diameter
0.5"
Starting Method
Description
OEM Direct Replacement Motor
5″ Diameter – 42 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Supplied with Motor)
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/2″ Diameter Shaft with FlatД” Leads with Flag Terminal
Belly Band Mount (Belly Band Not Included)
